Beiben 50 T dump truck
Product Details
Beiben 50 T dump trucks for africa customer
No 1 beiben 2638 dump trucks supplier for kenya, ghana, algeria , nigeria, tanzania, congo customer, we aim at producing good quality beiben 6*4,6*6,8*4,8*8 drive dump trucks with 40 T, 50 T, 60 T, 70 T loading capacity.
We produce beiben 2638K 40T, 50 T, 60 T, 70 T dump trucks for africa, congo , kenya, tanzania, ghana, algeria, nigeria, south africa countries.
1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service
Product Description

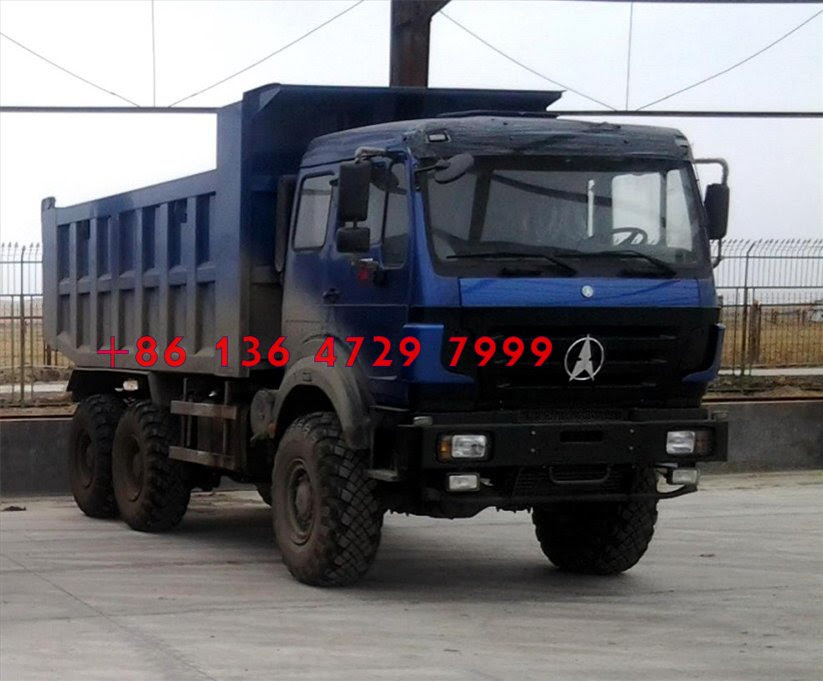

![beiben 6*4 dump truck with 360 hp engine beiben 6*4 dump truck with 360 hp engine](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_sKYQxTJ_bE6lb0EOSrahIgFMuW7ZTaDRj-nR_4uKNR4DU2_cIcs02dYF3x7hbifZIihj62JguOCCqqYmRfXoKPo4wjdRZbJ6pZ3p9Vy5moaJwzI1IjP10zYcUkGESyzO70VoVK7TBBszQyUOqJSm3d2CzMfacVisu7AQJWOKlhfn7vfA=s0-d)
![beiben 70 T dump truck manufacturer beiben 70 T dump truck manufacturer](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_vRmBoAKysFQgrPJFsOL3fka57-81bwq4FKtz1Df8o0pFpypmLyF-4YiVTGVV625iBTNIJTFTiazYK3W8x5bnVI-JItCQW6X-2S8pXiMoZcs-GEIGWBKn65uvR9i2nd53pvvz-84f9cauk6arlNN-oYj2JsZH9MmzMumQytqoTkEFtw8ac=s0-d)
![africa beiben 6*4 dumper africa beiben 6*4 dumper](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_t-L0Rqu1vDL6swuos_If5X8yz0ff6Ddsw6KCKeblZP8-EBBa-S9-Nfa86gAgtZOxx4L5JfrpdFEKiq8Xqnhd1VUrcf0zhoK-nHpQT3AMTyNDs5U1hOvIvKvVgnvixJg-b_Qh5UTJKfo3p3aVKevMUmWmWc1C6WBFaTTQiygTOM1o14Qqs=s0-d)
![africa beiben 6*4 dumper africa beiben 6*4 dumper](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_s3DChMv4AaXJCCt7fCTD0gyseoWcaTdga_xvyEhOmJ0ScEkb2FSPR_OiKjH6MpttX5TLX7nWaP54avKlFNG4suEh13rWX5ou4hk2HbC_HKgt3NihwKZGVLH3Xo9OTLxS_5gkuDHhrcE_aj_uvdjCmSHuzTUwV9sPjpFDl0CQ8CKl2C8mM=s0-d)
![africa beiben 6*4 dumper africa beiben 6*4 dumper](https://lh3.googleusercontent.com/blogger_img_proxy/AEn0k_vH-VfOFc_Vp6ixOmHLrFpCt6aMaWNNAu5wai4NkiaC9qwxK1hgiPZc9X_UWJj5sF074CMp-dU0nyveJHgw3Fvy4Cl0-_PwRPNsk7YIxLWvGAiYOM_VrJUAsLVqY7Uy4LVWLjsQyFAPJe1cF6xPd3Q3CxQ9BKxTFYv0NWbrxsAOMjGBaK8=s0-d)
Key Features:
◆Germany BENZ technology chassis with high durability and
reliability
◆ Germany BENZ technology engine combined with original rear axle
reducer gear and differential gear
◆Continuous welding throughout body for additional strength, Full
depth rear corner post with full depth rear crossmember.
◆ Enhanced body, and the motherboard adopts variable cross-section
beams.
◆ Special
Dump Body Design are optional
◆Other customer requirements are welcome
Technical Parameters:
2538K
/6×4/4100+1450/Short Cab/LHD or RHD
|
|||
Dimension
|
8880*2500*3430mm
|
||
Cargo
box
|
5600x2300x1350mm,
HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm
|
||
Approaching
angle/Departure angle
|
26/28°
|
||
Overhang(front/rear)
|
1410/1720mm
|
||
Wheel
base
|
3800+1450mm
|
||
Max
speed
|
85km/h
|
||
Curb
weight
|
12650kg
|
||
Engine
|
Model
|
WP10.380E32,
water-cooled, four strokes, 6 cylinders in line, turbocharged, directly
injection
|
|
Displacement
|
9.726L/Diesel
|
||
Stroke
|
126/130mm
|
||
Max.
power
|
280/2200
(kw/rpm)
|
||
Max.torque
|
1600/1800(N.m/rpm)
|
||
Emission
|
Euro
III
|
||
Fuel
tanker capacity
|
300L
|
||
Clutch
|
∮430,
Single dry frictional disc,Hydraulic boosting
|
||
Gearbox
|
9JS180,
mechanism, 9 forward gears, 1 reverse gear, manual operated
|
||
Gear
ratio of gear box
|
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00
R:13.22
|
||
Suspension
system
|
Front
|
Non-free
standing leaf spring,telescopic shock absorber with stabilizer bar suspension
, 10pcs
|
|
Rear
|
Non-free
standing stabilization spring, balance suspension system, 13pcs
|
||
Brake
system
|
Service
brake
|
Brake
gap can be adjusted automatically, double circulation air brake system
|
|
Assistant
brake
|
Engine
exhaust brake
|
||
Park
brake
|
Potential
springs pressing on middle and rear wheels
|
||
Steering
system
|
ZF8098
hydraulic steering with power assistance
|
||
Frame
|
Strengthened
Straight beam
|
||
Front
axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, non-driving steering axle
|
||
Middle
and Rear axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, ductile casting casing, with hub redactor, double reduction
driving axle
|
||
Tyre
|
315/80R22.5
tubeless tyres
|
||
Electrical
system
|
Battery
|
2X12V/135Ah
|
|
Generator
|
28V-35A
|
||
Starter
|
5.4Kw/24V
|
||
Cabin
|
NG80B
Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C |
||
