china beiben dump truck

china beiben dump truck

  • FOB Price $39,500
  • Production time 30 days
  • Payment terms T/T, L/C
enquiry
Product Details


beiben dumper supplier

 Applications:

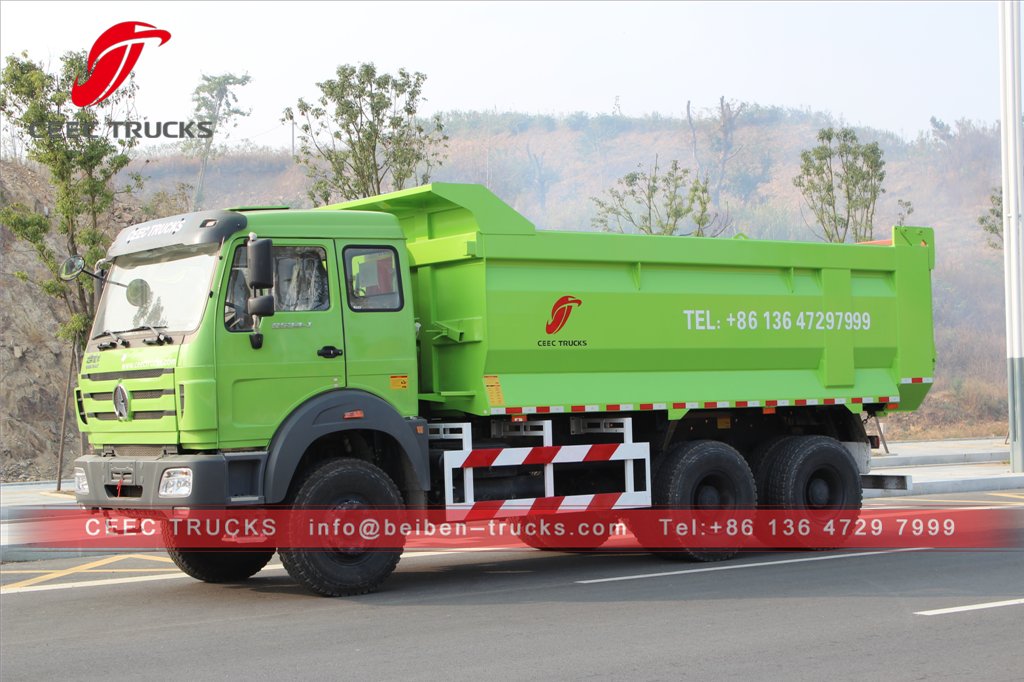

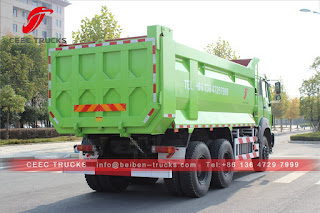

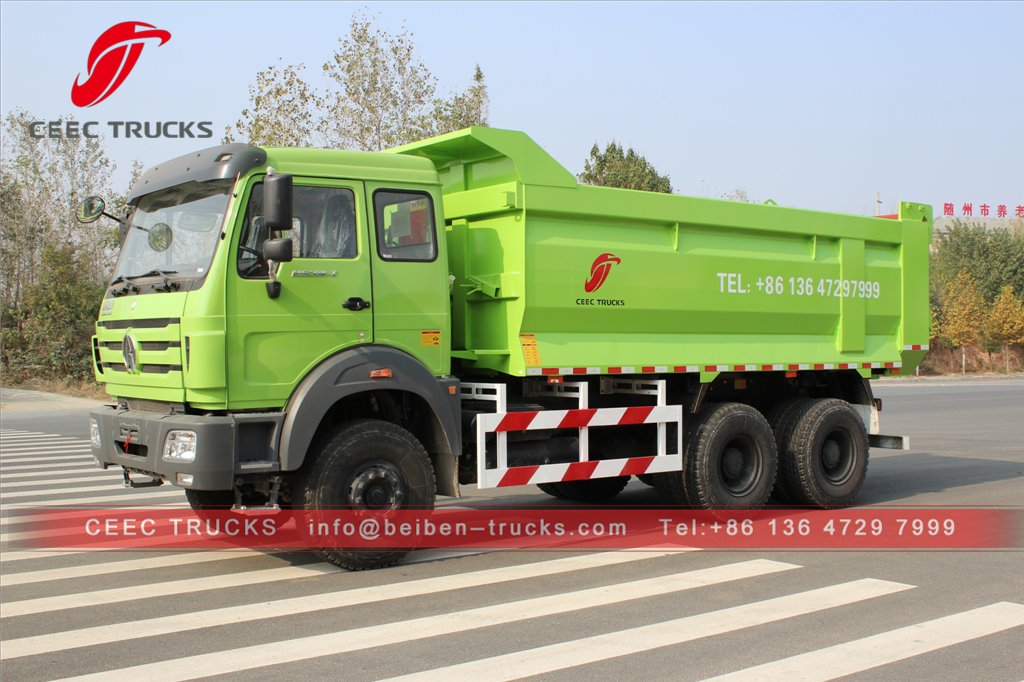

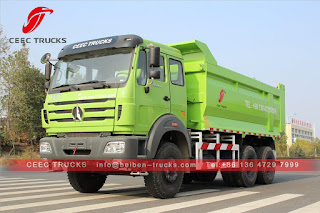

Dumper Truck Beiben (also called beiben dump truck, beiben tipper truck, north benz rear tipping vehicle, beiben mining dump truck, construction dump truck, beiben dumper, north benz tipper, mine tipper vehicle) is designed for loading, transporting and discharging construction material, also can be used in for mine rock delivery.



CEEC TRUCKS tipper trucks all use reliable HYVA brand hydraulic lifting device, with Front & Middle lifting optional.


The dump truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.

 Key Features:


---- Beiben chassis, perfect performance

---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dumper body capacity from 3 to 100 Metric Ton.
---- HYVA lifting device easy operation and maintenance.

---- Front lifting & middle lifting are available.

 Specifications:



Dump Truck Beiben (40T)
General
Vehicle Brand
CEEC TRUCKS
Chassis Brand
Beiben
Overall Dimension
8500*2490*3340 mm
GVW / Kerb Weight
25,000 kg / 14,800 kg
Cab
Cab Capacity
2 persons allowed
Air Conditioner
Heating/cooling air conditioner
Engine
Fuel Type
Diesel
Engine Brand
WEICHAI
Power
380 HP (280 KW)
Displacement
9726 ml
Emission Standard
Euro 2 or 3
Chassis
Drive Type
6X4, (left hand drive)
Transmission
FAST 9 speed levers with 1 reverse
Wheelbase/No. of axle
3800+1450 mm / 3
Tire Specification
12.00R20
Tire Number
10 tires and 1 spare tire
Max Speed
90 km/h
Paint
Metallic paint
Superstructure
Body Capacity
40 T
Tilting Device
Front lifting device
Hydraulic Cylinder
HYVA brand
Discharging model
Rear discharging
Dump Body Dimension
5600*2300*1500 mm
Thickness
Side Board: 8mm
Floor Board: 10 mm
Control panel
English or Your language
All standard accessories: basic tool kit, English manual……
Optional
** Back alarm and Camera can be equipped.
** Italy mulit-valve can be choose.
** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

 beiben dumper supplier


---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.


beiben dumper truck inspection



---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.

beiben dumper truck spare parts
beiben dumper truck parts



---- Service more than 60 countries.
----  Professional guidance on your importing documents.
----  CO, FORM E, FORM P, Pre-shipping Inspection...

beiben dumper truck export documents


---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely


beiben dumper truck factory advantage



---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely


beiben dumper truck export review



---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free---- 100% quality guarantee.

beiben dumper truck export review
