Beiben 70 T dump truck manufacturer

Beiben 70 T dump truck manufacturer

inquiry_ico
Product Details

Beiben 70 T dump truck manufacturer

beiben 70 T dump truck manufacturer
China beiben 70 ton dump truck supplier for beiben 2534,2538 dump truck chassis. Best beiben dump trucks plant since 2000 year.  Supply more than 1000 units beiben dump trucks with more than 200 different kinds of foreign customers. We have the most professional beiben dump trucks workers and engineers, to ensure the super quality and excellent after sale service.

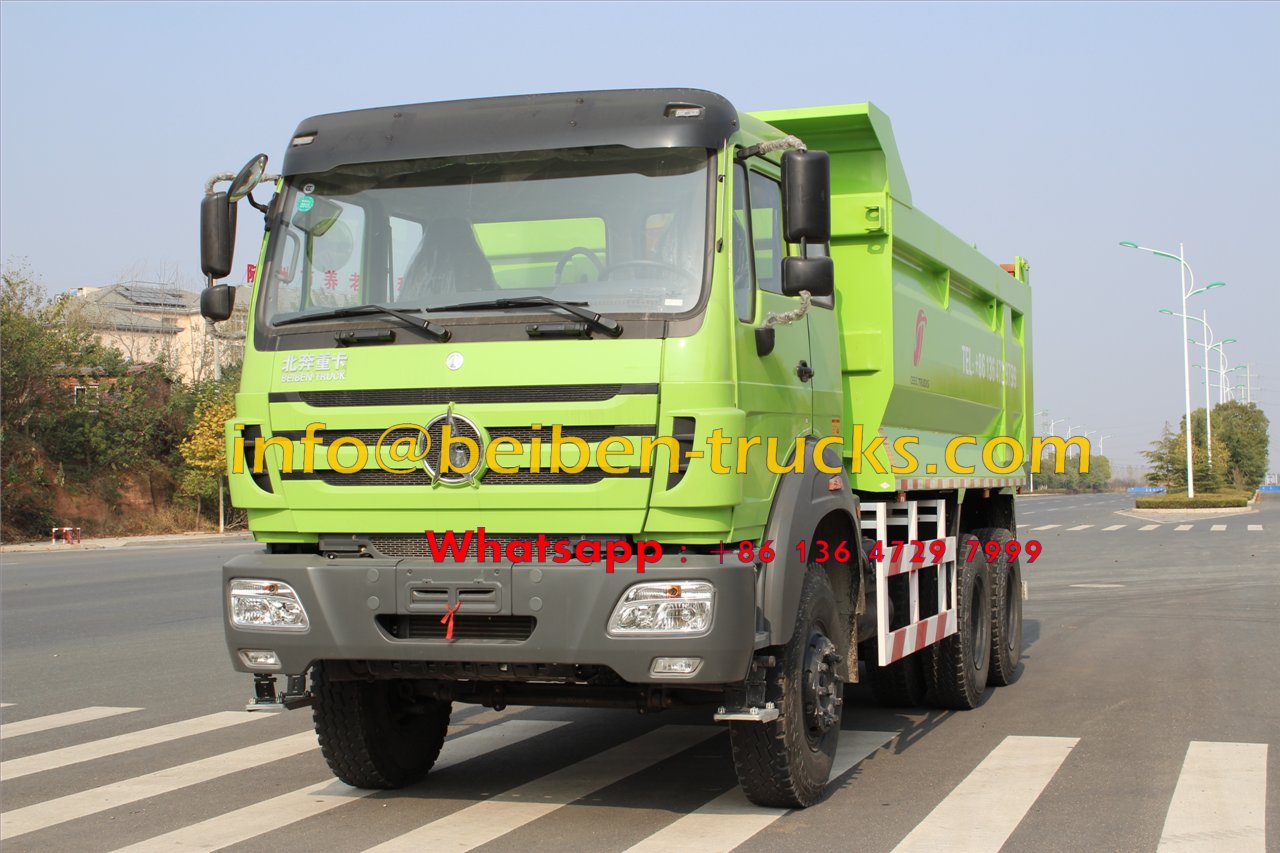

beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer


2538K /6×4/4100+1450/Short Cab/LHD or RHD
Dimension
8880*2500*3430mm
Cargo box
5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm
Approaching angle/Departure angle
26/28°
Overhang(front/rear)
1410/1720mm
Wheel base
4100+1450mm
Max speed
85km/h
Curb weight
12650kg
Engine
Model
WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Displacement
9.726L/Diesel

Stroke
126/130mm

Max. power
280/2200 (kw/rpm)

Max.torque
1600/1800(N.m/rpm)

Emission
Euro III
Fuel tanker capacity
300L
Clutch
∮430, Single dry frictional disc,Hydraulic boosting
Gearbox
9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated
Gear ratio of gear box
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22
Suspension system
Front
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs

Rear
Non-free standing stabilization spring, balance suspension system, 13pcs
Brake system
Service brake
Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake
Engine exhaust brake

Park brake
Potential springs pressing on middle and rear wheels
Steering system
ZF8098 hydraulic steering with power assistance
Frame
Strengthened Straight beam
Front axle (Mercedes Technology)
Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology)
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre
315/80R22.5 tubeless tyres
Electrical system
Battery
2X12V/135Ah

Generator
28V-35A

Starter
5.4Kw/24V
Cabin
NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C


Dump Body
Body type
Rectangle reinforced standard body
(more body type refer to using environment)
Inner size
5600x2250x1300 mm
Side/front/tail plate thickness
8 mm Q235A carbon steel
Deck plate thickness
10 mmQ235A carbon steel
Lifting system,
China famous hydraulic lifting system
Lifting Type
Middle tipping
Tipper body lifting time,
≤ 20 S
Tipper body Falling Time
≤ 20 S
Max. lifting angle
52°
Let us have a view of our beiben dump truck plant, the most professional beiben dump truck workshop in china, even in asia.


beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer

beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer

Beiben 70 T DUMP TRUCK with U type cargo box before shipping .






































































































































































































beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer

beiben 70 T dump truck manufacturer

beiben 70 T dump truck manufacturer
beiben 70 T dump truck manufacturer

Africa customer's beiben 70 T heavy duty dump truck shipping on board.
