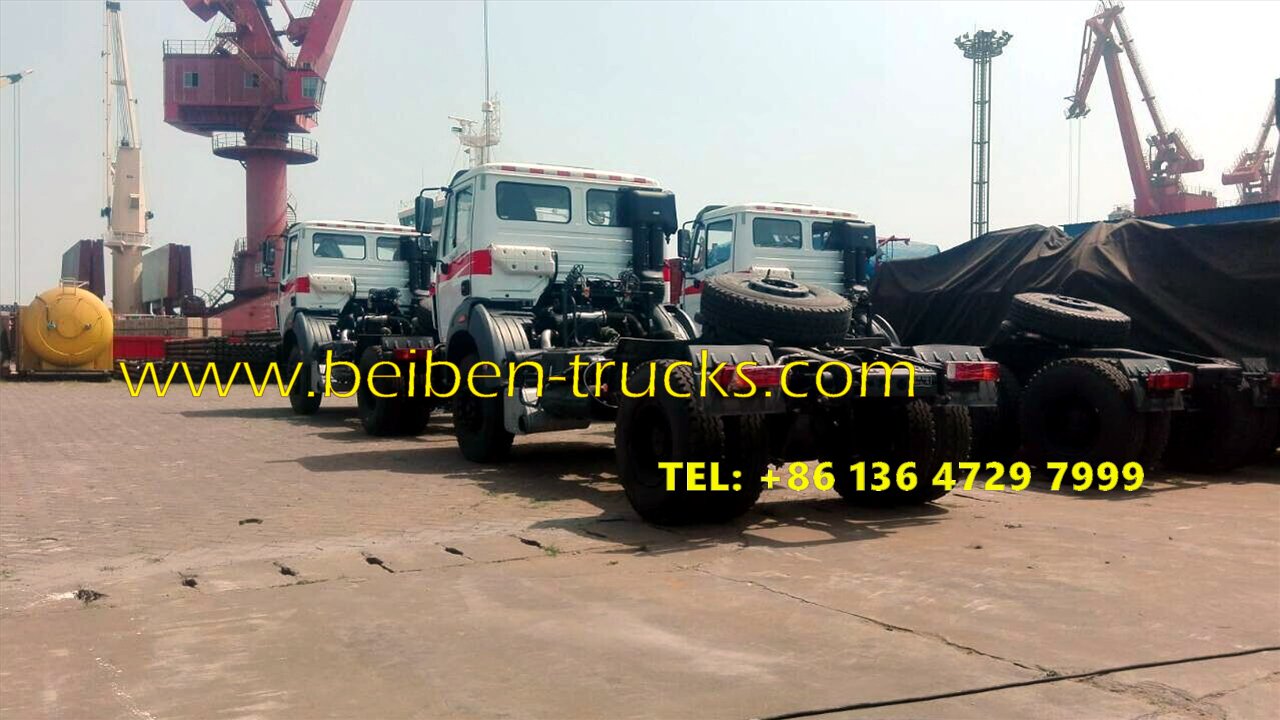

Beiben 2538 tractor truck in shipping

Algeria 2538 tractor truck

algeria beiben trucks supplier

Function:

Heavy duty Construction,  Mining and quarries,

Heavy duty material transportation

Dry Bulk,  Building Material, Waste
Agriculture,  FreightPlant Hire, Military

Advantage:

Original Germany Mercedes Benz technology
30% price lower than BENZ trucks
More than 15 years in beiben tractor truck exporting
12 months free beiben genuine spare parts serivce.
Training service for north benz tractor trucks

  CEEC TRUCKS, FOR YOUR SUCCESS.

Beiben Trucks

Axles from Mercedes Benz technology

Beiben Trucks

heavy usage applications, equipped with double-layer reinforced frames

trucks_03

Ease of use, simple and reliable
Specification:

Similar key words : algeira beiben beiben tractor truck and beiben dump truck supplier, supply best quality beiben 2534,2538,2542 prime omver for algeria customer. As the most professional north benz tractor truck dealer in algeria. CUrrently we can supply beiben 6*4 tractor truck, beiben 6*6 tractor truck, beiben 10 wheeler, 12 wheeler dump truck , beiben concrete mixer truck.

beiben 2534 tracteur camions price
Algeria top beiben trucks supplier, for supplying beiben 4*4,4*4,6*4,6*6,8*4,8*8 trucks in algeria.
  beiben 2638 tractor camions
Our prices are considerably lower than European, American and Asian competitors; including Mercedes Benz Actros 2542tractor trucks.. Congo best beiben tractor truck supplier, supply the best quality beiben 6*4 tractor truck, beiben 4*2 tractor trucks.

 algeria beiben trucks supplier
algeria beiben trucks supplier
Beiben 2538 prime mover
2538SZ /6×4/3450+1450/Long Cab/LHD
Dimension 7136*2495*3180mm
Approaching angle/Departure angle 26/64°
Overhang(front/rear) 1410/825mm
Wheel base 3450+1450mm
Max speed 90km/h
Curb weight 9200kg
Max towing weight 36900kg
Max loading on fifth wheel, Permitted(kg)
15670kg
Slope climbing capability Max.40%
Engine Model WP10.380E32,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection
Displacement 9.726L/Diesel
Stroke 126/130mm
Max. power 280/2200 (kw/rpm)
Max.torque 1460/1200-1600(Nm/rpm)
Emission stantard EuroⅢ
Fuel tanker capacity 400L
Clutch ∮430, Single dry frictional disc,Hydraulic boosting
Gearbox
12JS200T, mechanism,12forward gears,2 reverse gear, manual operated
Gear ratio of gear box 15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1.00 R: 14.86 3.33
Suspension system Front Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
Rear Non-free standing stablization spring, balance suspension system, 13pcs
Brake system Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system TAS85,whole circulation in ball, hydraulic booster
Frame Fish belly shape, variable width, variable sections
Model
JOST ∮90 single direction
Height of fifth wheel(mm) (unload)
1410
Radius of front gap (mm)
2300
Radius of rear slew (mm)
2600
Front axle (Mercedes Technology) Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology) Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre 12.00-R20
Electrical system Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cabin NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

algeria beiben trucks supplier
algeria beiben trucks supplier
algeria beiben trucks supplier


 Beiben 40 T , 50 T, 60 T, 70 T tractor truck

Model Engine Model Rated Power Payload Driving Mode
Beiben 1834S
WD615.34 340Hp 40Ton 4x2
Beiben 2538 WP10.380 380 Hp 45 Ton 6x4
Beiben 2634 WP10.340 340 Hp 40Ton 6x4
Beiben 2642 WP12.420 420 Hp 48 Ton 6x4
Beiben 2642 WP10.420 420 Hp 50 Ton 6x4
Beiben 2638S WP 10.380 380 hP 48 T 6x4
Beiben 2638 WP10.380 380 Hp 45 Ton 6x4
Beiben 2638S WP 10.380 380 hP 50 T 6x4
Beiben2642 WP 10.420 420 Hp 60 T 6x4
Beiben 2542S WP12.420E32 420 Hp 50 T 6x4
Beiben 1630A WP10.300N 300 Hp 30 T 4x4
Beiben 2534 WP 10.336 336 Hp 50 Ton 6x6
Beiben 2638 WP10.380 380 Hp 50 Ton 6x4
