Beiben 2534 tractor truck for congo

Beiben 2534 tractor truck for congo

inquiry_ico
Product Details

1.World famous Bezn technology  tractor truck,
2.Mercedez-benz technology
3.CONGO best quality beiben tractor truck spplier
4.Genuine beiben tractor truck parts service
5.Congo local agent

2016 year Beiben 2534 tractor truck for CONGO On Sale

Congo 6x4  tractor truck(Mercedes Benz technology)
Germnay benz truck Traction type: 6X4
Driving type: LHD (RHD is option)
Cabin: North Benz (One Sleeper)

                                             congo beiben 2534 tractor truck

      As the best beiben camions tracteur supplier for congo customer,we aim at to be the most professinal beiben NG80B tractors supplier on beiben 340 hp engine tractor trucks, beiben 340 hp engine tractor truck, beiben 420 hp engine tractor truck for congo country.

  We provide original beiben 340 Hp tractor truck, 380 hp, 420 hp tractor truck for CONGO , pointe noire , brazaville, kinshasa, Matati . The most competetive price for congo beiben tractor trucks.

Our congo local agent  on beiben NG80 tractors will dedicate ourselves to the whole perfect solution for customer's logistic arragement. Beiben trucks , for your success.

 China famous beiben truck 6*4 drive system, Germany benz technology, Famous Europen Weichai engine 340 hp , fast 9 shift transmission, 12.00R20 tyre, with BENZ technology 7 T front axle and 16 T double reducer rear axle.
beiben tractor truck for congo customer

  Bei Ben new NG80B tractor trucks is with attractive appearance, and specific heavy tractor truck metallic framework + stressed-skin construction, possessing security of same level of European automobiles, which fulfils European ECER29 safety and regulatory requirements; stamping molding of frame only once ensures girder strength.

CONGO 2016 year beiben tractor truck on SALE
congo beiben 2534 tractor truck
       6x4 drive, 340 Hp engine, 12 shift transmission,Euro 2
Industries application

Construction,  Mining and quarries,  Heavy duty material transportation Dry Bulk,  Building Material, Waste
Agriculture,
FreightPlant Hire, Military

Great quantity china Beiben NG80 right hand drive tractor trucks with customer LOGO, which we have exported to South africa.
2534SZ /6×4/3450+1450/Long Cab/LHD
Dimension
6935*2495*3180mm
Approaching angle/Departure angle
26/64°
Overhang(front/rear)
1410/625mm
Wheel base
3400+1450mm
Max speed
90km/h
Curb weight
9200kg
Max towing weight
39600kg
Max loading on fifth wheel, Permitted(kg)
15670kg
Slope climbing capability
Max.40%
Engine
Model
WP10.340E32water-cooledfour strokes6 cylinders in lineturbocharged, directly injection
Displacement
9.726L/Diesel
Stroke
126/130mm
Max. power
276/2200 (kw/rpm)
Max.torque
3500/1200-1600Nm/rpm
Emission stantard
Euro
Fuel tanker capacity
400L
Clutch
430, Single dry frictional discHydraulic boosting
Gearbox
12JS160T, mechanism,12forward gears,2 reverse gear, manual operated
Gear ratio of gear box
15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33
Suspension system
Front
Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs
Rear
Non-free standing stablization spring, balance suspension system, 13pcs
Brake system
Service brake
Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake
Engine exhaust brake
Park brake
Potential springs pressing on middle and rear wheels
Steering system
ZS8098,whole circulation in ball, hydraulic booster
Frame
Fish belly shape, variable width, variable sections
Model
JOST 90 single direction
Height of fifth wheel(mm) (unload)
1410
Radius of front gap (mm)
2300
Radius of rear slew (mm)
2600
Front axle (Mercedes Technology)
Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology)
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre
12.00/R20
Electrical system
Battery
2X12V/135Ah
Generator
28V-35A
Starter
5.4Kw/24V
Cabin
NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C

congo beiben 2534 tractor truck
congo beiben 2534 tractor truck
congo beiben 2534 tractor truck


congo beiben 2534 tractor truck
congo beiben 2534 tractor truck
congo beiben 2534 tractor truck
congo beiben 2534 tractor truck
congo beiben 2534 tractor truck



Model Engine Model Rated Power Payload Driving Mode
Beiben 2548 WP12.480N 480 Hp 100 Ton 6*4
Beiben 2642 WP12.420N 420 Hp 55 Ton 6*4
Beiben 2542 WP12.420E32 420 Hp 70 Ton 6*4
Beiben 2534 WP10.336 336 Hp 40 Ton 6*4
Beiben 2534 WP10.340 340 Hp 45 Ton 6*4
Beiben 2538 WP10.380N 380 Hp 50 Ton 6*4

2015年12月8日星期二

5 units beiben 2528 water tanker truck export to africa, Ghana

5 units beiben 2528 water tanker truck export to africa, Ghana

2015-12-09 09:45:42

In december, 5 units beiben 2528 water tanker trucks are sucessfully finished in our plant.

ghana beiben water tanker truck
These beiben 6*4 drive water trucks will be shipped to ghana, Tema seaport.Beiben 20 CBM water trucks are fully with Mercedes benz technology , china famous brand diesel engine, ZF transmission, and benz technology axle, tyre, cabin. Ghana customer is very satisfied with the beiben 20 CBM water truck quality.

ghana beiben water tanker truck





Beiben concrete mixer truck advantage in 2016 year.

 Beiben concrete mixer truck advantage in 2016 year.


Firm and Safe
Framework structure, beiben concrete mixer truck body welding by robot, the strictest regulation and certification on front collision and top pressure, lead to firm and reliable quality. Design of instrument panel and rearview mirror is superior to national standard, and there is no dead angle in the all-directional angle of view. Thus it is applicable to different working conditions.
Antifatigue
Four-point full-suspension shock absorption cab, and double-layer door sealing and noise
reduction benz technology; shock absorption effect even matches models of Europe, America and
Japan, fatigue resulting from bumping drive is mitigated.
Low noise in cab helps alleviate the noise-induced fatigue. Interior trim is colored in red and black,exuding the sports atmosphere and reinforcing resistance to visual fatigue. Steering wheel has Bluetooth function, which reduces the hidden trouble resulting from the driver’s handset using.
Convenient and Quick Maintenance
Cab has large tilting angle, and so parts like engine and gearbox can be lifted out of the cab for maintenance. Front-mounted air conditioner can be repaired once the front panel is opened, which offers convenience and saves time for customers.
Decent and Good-looking
Appearance of European and American style is of decent and masculine elements. Car-like interior trim, instrument panel and seats made of high-quality materials, and trim strips
inlaid with titanium and silver enable you to enjoy dignity and glory.
SAFE BRAKE TECHNOLOGY
Make full use of the engine’s auxiliary power braking, and realize joint operation with the brake, making the braking distance increased by 15%, and abrasion of brake lining decreased by 50%.
Large-power air compressor, high-quality pipeline, and brand-new sealing technology help shorten the inflation time and quicken the brake response.
ENERGY-SAVING TECHNOLOGY
Engine runs in dual-power model, and is applicable to different working conditions like full load and no load etc.
Thanks to the mixer truck matching technology, unique economic transmission portfolio is realized, making fuel consumption decreased by 10%.
LOW DECK TECHNOLOGY
Unprecedented “No Sub-frame Structure” in the industry makes the mixer truck’s deck drop by 140mm to 200mm. Thanks to years of devotion to R & D of self-made chassis, the mixer truck’s frame structure is optimized, and so the mixer truck runs more stably.
FLEXIBLE STEERING TECHNOLOGY
Large-displacement power steering oil pump’s application makes the operating force decline by 40%, and facilitates the steering. Optimize the chassis pipeline and front axle’s steering angle, making the mixer truck’s steering diameter decreased by 15%. Therefore, the mixer truck’s running is more flexible.
ANTI-BUILDUP TECHNOLOGY
Three-section folded blade helps enlarge the discharge glide angle.
Flushing device, innovative front taper and bal-crown connecting structure are additionally installed at the rear taper, in order to clear stagnant aggregate at the dead space, and to prevent aggregate from piling up at front and rear tapers, which is viewed as a hard nut in the industry. Due to this, the residual rate at the discharge port declines to 0.4%, which will create more value for you!
SMART OPERATING TECHNOLOGY
Equipped with GPS system, and boast five functions like mixer truck monitoring, record playback, event alarm, mixer truck management, and statistics & analysis. Due to this,you can keep abreast of the mixer truck’s location, oil level,and discharge, which will save trouble for you!

Beiben 2527 fuel tanker truck

Beiben 2527 fuel tanker truck

inquiry_ico
Product Details

Beiben 2527 fuel tanker truck

beiben 20 CBM fuel tanker truck
we  the most professional beiben fuel trucks manufacturer, more than 15 years great experience on manufacturing beiben 2527 fuel truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben  2538 fuel tanker truck,beiben 3132 fuel tankers.
   The beiben fuel tanker from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben 8*4 fuel tankers. All the beiben fuel tanker trucks from ceec trucks plant can have long guarantee more than 12 months.
 beiben 2534 concrete mixer truck shippment.
Beiben fuel truck 6*4 drive type chassis specification .
Truck Chassis Model
Beiben  ND1251B44(NORTHBENZ)
Engine
WP10.270
Type
Vertical ,in line, Water-cooled,four-stroke cycle diesel engine
199 / 2200
Max Torque,N.m/rpm
1100/1200-1600
Displacement,ml
9726
Emission Standard
Euro 3
Transmission
9JS135(FAST)
Speed No.s
9 Forward and 1 Reverse Speed
Max Output Torque,N.m
1350
Max Output Speed,rpm
2600
Input Power,hp
243
Oilling ,liters
12.5
Gearshift
Manual (Mechanical)
Clutch
GFX430
Type
Single-plate dry coil-spring dry frictional clutch, diameter 430mm, hydraulically operating with air assistance
Axle
BENZ
Front Axle
Mercedes Benz Technology
Front Axle Capacity,kg
7000
Front Axle Type
Double-shoe pneumatic brake ,driving steering axle
Middle&Rear Axle
Mercedes Benz Technology
Middle&Rear Axle Capacity,kg
7000/18000
Middle&Rear Axle Type
Double-shoe pneumatic brake ductile casting casing, with hub redactor, double reduction driving axle
Rear Axle Ratio
5.921
Brakes

Service brake
Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake
Engine exhaust brake
Park brake
Potential springs pressing on middle and rear wheels
Sterring
TAS85(ZF)
Drive Side
Left hand drive
Steering Type
Hydraulic steering with power assistance,ZF8098
Output Torque,Nm
5890
Rocker shaft swing angle,degree
90
Drive Ratio
1:160
Cabin
NG80
Type
Forward control, all steel welded construction, long cab, inner A/C, one bed
Seat Nos
3
Bunk No.s
1
Wiper No.s
2
Tires
12.00-20
Tire No.s
10+1 spare tire
Type
Nylon tires
Rims
8.25-20
Rim No.s
12+1 spare tire
Type
All steel dicasting
Electrical
24V
Battery Voltage,V
2X12
Battery Ampere,Ah
135
Generator,V,A
28,35
Starter, Kw/24V
5.4
  All the fuel tanker components that we applied on beiben fuel trucks is china famous brand and reliable quality.
Beiben fuel tanker upper structure technical specification.

Beiben 2527 truck chassis .
General Information

Drive Mode
6x 4
Wheel base,mm
4450+1450
Overall Length,mm
9455
Overall Width,mm
2500
Overall Height,mm
3375
N.V.W,kg
25000
Tare Weight,kg
11470
Max.Traveling Speed,km/h
85
Front Overhang,mm
1410
Rear Overhang,mm
2145
Front Track,mm
1995
Rear Track,mm
1800
Min. Ground Clearance,mm
327
Fule Tank Capacity,liters
400
Tank Body
Tank Shape Ellipse Style
Capacity ,liters
22,000
Compartments,pcs
3
Pressure,Mpa
0.084
Outlet Pipe Diameter,mm
80
Baffles,pcs
6
Manhole No.s
3
Hose,pcs x m
2 x 6
Filling Time,min
<10
Drainage Time,min
<22
Length,mm
7400
Width,mm
2380
Height,mm
1550
Material Thickness,mm
5
Cover Thickness,mm
5
Tank Material
Carbon steel, Q235A 16Mn
Pump
80YHCB-60
Self-Suction Depth,m
6.5
Capacity ,liters/h
60
Flow Length,m
20
Flow Speed, l/min
960
Shaft Power,kw
22.5
Inlet Diameter,mm
80
Outlet Diameter,mm
60
Pressure,Mpa
0.6
Suction Time,min
<4
Benz ECR29 standard cabin, beiben NG80B truck cabin, good performance,and high safety.

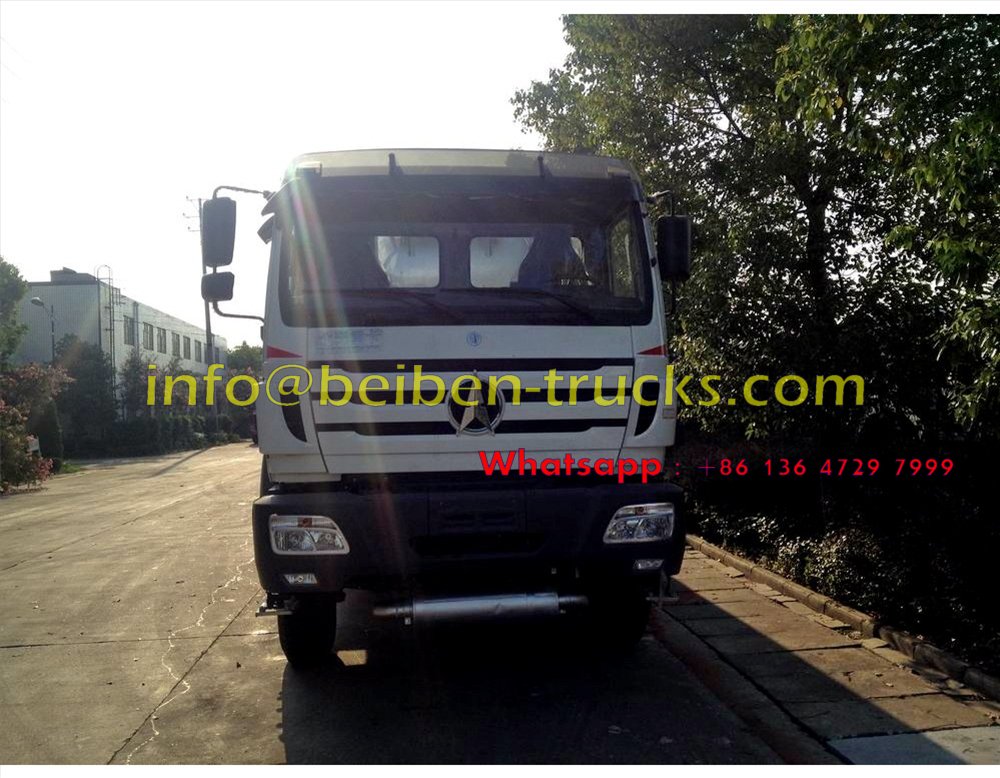

beiben 20 CBM fuel tanker truck

15 years experience on beiben tanker trucks manufacturer, our experienced engineer and worker are familiar with each detail for the beiben 20 CBM fuel tanker truck design and producing.
beiben 20 CBM fuel tanker truck
The extremely combination of beiben 2527 truck chassis and CEEC fuel tanker upper structure. Thanks for the great work of our workers.
beiben 20 CBM fuel tanker truck
Durable painting for the whole beiben fuel tanker trucks, shiny performance.
beiben 20 CBM fuel tanker truck
beiben 20 CBM fuel tanker truck
beiben 20 CBM fuel tanker truck
Beiben fuel tanker truck workshop.

beiben fuel tanker truck workshop
beiben fuel tanker truck workshop
beiben fuel tanker truck workshop
beiben fuel tanker truck workshop
beiben fuel tanker truck workshop
