africa beiben 6*4 dumper

africa beiben 6*4 dumper

inquiry_ico
Product Details

africa beiben 6*4  dumper

africa beiben 6*4 dumper

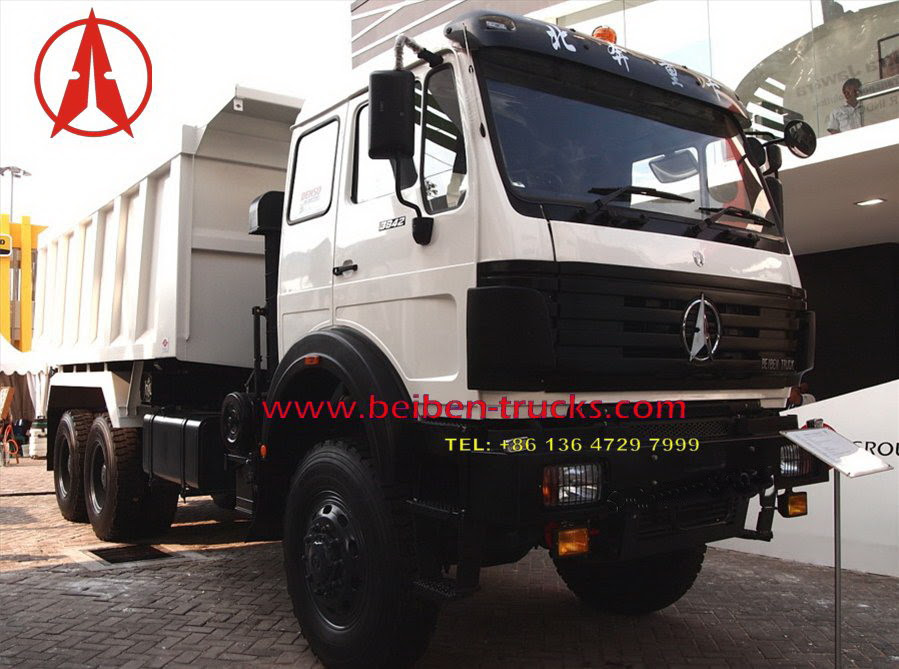

China classic cabin of beiben NG80 2638 tipping truck, These beiben NG80 2638 dump trucks are produced on beiben 2638 dump truck chassis, benz classis NG80B 380 hp engine. Now, we can produce beiben 2638 left hand drive and right hand drive dump trucks. We are the best beiben 2638 tipping trucks manufacturer in china.
We produce beiben 2638K 40T, 50 T, 60 T, 70 T dump trucks for africa, congo , kenya, tanzania, ghana, algeria, nigeria, south africa countries.

1.shortest delivery time
2.more competitive price,
3.reliable and high efficient performance
4.good after-sales service

Product Description
beiben 6*4 dump truck with 360 hp engine

Key Features:
Germany BENZ technology chassis with high durability and reliability
Germany BENZ technology engine combined with original rear axle reducer gear and differential gear
Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
Enhanced body, and the motherboard adopts variable cross-section beams.
Special Dump Body Design are optional
Other customer requirements are welcome
beiben 2638 K dump truck
Technical Parameters:

2538K /6×4/4100+1450/Short Cab/LHD or RHD
Dimension
8880*2500*3430mm
Cargo box
5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm
Approaching angle/Departure angle
26/28°
Overhang(front/rear)
1410/1720mm
Wheel base
3800+1450mm
Max speed
85km/h
Curb weight
12650kg
Engine
Model
WP10.380E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection

Displacement
9.726L/Diesel

Stroke
126/130mm

Max. power
280/2200 (kw/rpm)

Max.torque
1600/1800(N.m/rpm)

Emission
Euro III
Fuel tanker capacity
300L
Clutch
∮430, Single dry frictional disc,Hydraulic boosting
Gearbox
9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated
Gear ratio of gear box
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22
Suspension system
Front
Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs

Rear
Non-free standing stabilization spring, balance suspension system, 13pcs
Brake system
Service brake
Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake
Engine exhaust brake

Park brake
Potential springs pressing on middle and rear wheels
Steering system
ZF8098 hydraulic steering with power assistance
Frame
Strengthened Straight beam
Front axle (Mercedes Technology)
Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology)
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle
Tyre
315/80R22.5 tubeless tyres
Electrical system
Battery
2X12V/135Ah

Generator
28V-35A

Starter
5.4Kw/24V
Cabin
NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C




beiben 70 T dump truck manufacturer
