China best beiben fire truck manufacturer
We are the most professional beiben fire fighting trucks manufacturer in china, we produce beiben 2527,2529,2534,2538 fire fighting trucks.

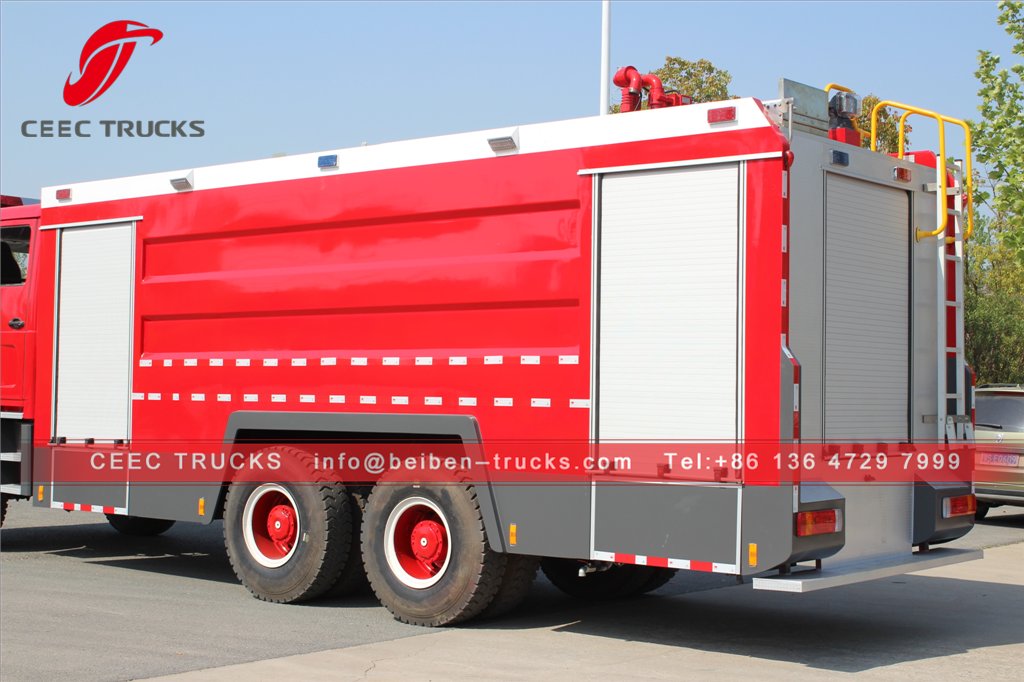

Beiben 15000L Fire Truck
Specification sheet
Description:
Fire truck is also
named fire- fighting truck. It is include liquid tanker, pump room, equipment
boxes, power output and transmission system, pipeline system, electrical system
and so on, widely used in urban public fire brigade, petroleum chemical industry
and other departments, can quickly close to the fire field fire-fighting, to
fighting a variety of fire, is the ideal fire- fighting equipment.
Areas of Application and Use:
l
Petroleum chemical industry, oil depots, oil terminals
l
Urban public
fire brigade
l
Mines, ports,
docks, forest and other departments
l
Airport or
crowded areas
l
High-altitude water supply
l
Mobile pumping stations
Key
Features:
l Benz technology 6*4 Heavy-duty chassis, durable & performance
l 15000L standard water
tank, high quality carbon stell plate, anti- treatment
l Easy access to Pump
room – positioned at chest height making it faster and easier to pull out and
set up.
l USA Darley Pump and
Hale pump are optional
l Standard 80/65/50 hose
for your choose and gives you optimum hose storage space
l Huge fire equipment
equip with your fire truck, put into service immediately.
l Water tank fire truck,
Foam fire truck, Dry powder fire truck, Emergency Rescue Vehicle
Technical Parameters:
1.0 Main Chassis Spec:
|
Name
|
Standard
configuration
|
|
|
♦ Model:
|
CEEC5150XFC
|
|
|
♦ Chassis
|
BEIBEN 6*4
truck for Fire Engine application
|
|
|
♦ Drive type:
|
6x4 Left hand
drive
|
|
|
♦ Wheel base
|
5050+1450 mm
|
|
|
♦ Dimension size
(LxWxH)
|
10105×2480×3380mm
|
|
|
♦ Cabin Structure:
|
The all-steel
stamping parts welded structure, install double-row seat to rollover the
double-cab hydraulic oil tanks overturned, can be moved overturned forward
|
|
|
♦ Inside cabin
equipment
|
automatic
temperature control air conditioning system of environmental protection
(R134A refrigerant, without Freon), Radio + MP3. In addition to the car
equipment, the installation of P.O.T. controlled switches, siren, alarms
lights, indicator lights, sign lights, profile signal controlled switches
|
|
|
♦ Number Of Seats
|
2+4 seats with
Four-door
|
|
|
♦ Air condition
|
Yes
|
|
|
♦
Engine
|
Model
|
WP10.336E40
|
|
Power
|
247 Kw (336 Ps)
|
|
|
Torque
|
1360/1450 N.m/r/min
|
|
|
Advantage
|
Beiben brand new engine,4 stork, 6 cylinder, New
ultra high pressure common rail fuel injection system, strength of
electronically controlled cooled EGR system, electronically controlled
variable geometry turbocharger systems (VGS)
|
|
|
Fuel
|
Diesel
|
|
|
Displacement
|
9800 ml
|
|
|
♦ Transmission gear:
|
FAST 9-speed
gearbox, suitable to all kinds of roads, more fuel-efficient
|
|
|
♦ Front axle:
|
Reverse Elliot,
I-Beam
|
|
|
♦ Rear axle:
|
Single Reduction
Banjo Design Full Floating
|
|
|
♦ Clutch
|
Single-plate dry
coil-spring clutch, hydraulically operating with air assistance
|
|
|
♦ Fuel tank
|
400 L
|
|
|
♦ Tyres:
|
12.00R20
|
|
|
♦ Curb Weight
|
11205 kg
|
|
|
♦ Brakes
|
Service
brake: dual circuit compressed air
brake
Parking
brake: Spring energy, compressed air
operating on rear wheels
Auxiliary brake:
engine exhaust brake
|
|
|
♦ Electrics
|
Operating
voltage: 24V 120 AH Battery, negative grounded
|
|
|
♦ Maximum Speed:
|
90 km/h
|
|
|
♦ Maximum
gradeability:
|
35 %
|
|
2.1 Tanker System:
|
Name
|
Standard
configuration
|
|
♦ Water tank volume
|
12000 L
|
|
3000L
|
|
|
♦ Tank material
|
High quality carbon
stell plate, anti- treatment , thickness:5 mm
|
|
♦ Manhole
|
DN500mm, with quick
lock/open device
|
2.2 Fire Pump and Monitor
|
Name
|
Standard
configuration
|
|
|
|
Model
|
CB10.60/20.40,
middle and normal pressure fire pump,rear back mounted,
with aluminum roller shutter door
|
|
Maker
|
XIONGZHEN / RONGSHEN
(China TOP brand)
|
|
|
Flow
|
25L/S (middle
pressure)
60L/s (low pressure)
|
|
|
Pressure
|
2.0 MPA (middle pressure)
1.0 MPA (low pressure)
|
|
|
Installation
|
Rear mounted
|
|
|
♦ Fire
monitor
|
Model
|
SP40
|
|
Maker
|
China Famous brand
|
|
|
Location
|
Top of tank
|
|
|
Jet monitor rotation
angle
|
360°
|
|
|
Angle of elevation
|
≥70°
|
|
|
Angle of depression
|
≤-15°
|
|
|
Throw
|
Water throw≥65meter,
Foam throw ≥60m
|
|
|
Rotation
|
360º; elevation:
0-80°, depression -10°
|
|
|
Name
|
Standard
configuration
|
|
♦ Material
|
Framework made out
of the high-quality carbon steel, interior strake of the 2.5 mm aluminum
jacquard card (anode treatment). Outside covered skin made out of
high-quality carbon steel plate.
|
|
♦ Stucture
|
(1) the interior
frame of storage compartment made out of welding structure, the top face to
be 2.5 mm jacquard steel plate, high strength, rigid, and nice.
(2) the inside
storage compartment to be aluminum plate.
(3) convenient
switch of roll shutter, with push-button locking handle
|
2.4 Pump room:
|
Name
|
Standard
configuration
|
|
♦ Location
|
On the rear or
central of truck.
|
|
♦ Stucture
|
(1) There are pump
system and pipeline, reasonable
structure. Easily operate and operate-switch.
(2) the inside
storage compartment to be aluminum plate.
(3) convenient switch
of roll shutter, with push-button locking handle
|
|
♦ Inlet and outlet
|
One DN125 suck inlet
with strainer mesh at rear, and two DN65 for hydrant filling connections. Two
DN80 outlet be mounted on both rear side of truck.
|
2.6 Panel and
equipment:
|
Name
|
Standard
configuration
|
|
♦ Location
|
the panel mounted in
the pump room
|
|
♦ Equipment on the panel
|
2 No. level gauge
1 No. revolution
counter
1 No. manometer
1 No. vacuum gauge
1 No. lighting
switch
|
3.0 Painting:
|
Name
|
Standard
configuration
|
|
♦ Outside
Sandblasting
|
All the steel and
stainless steel parts are sandblasted before painting
|
|
♦ Painting
|
Using high-quality
polyurethane paint, a long-term accretes, no chap, not falling, to prevent
debris impact, corrosion resistance, and nice features.
|
|
♦ Bright red paint
|
Cabin, storage
compartment, pump room, rims’ inner ring (except roll shutter)
|
|
♦ White
|
Rims’ outer ring,
the bumper of front and rear.
|
|
♦ Logo
|
All logos are FREE
according to our clients
|
4.0 Inspections & Training:
|
Name
|
Standard
configuration
|
|
♦ Factory inspection
|
The
customer can inspect the production in manufactures factory when completed,
then arrange the balance payment.
|
|
♦ Operation
Manual
|
English
Version (Option video also available)
|
|
♦ Training fee
|
Two FREE days training
in CEEC factory
|
|
♦ Training type
|
Required training
about using the equipment will be given by the manufacturer to the related
workers in the superstructure area
|
Accessories with Fire Fighting Vehicle
(standard equipment)
|
No.
|
Item
|
Specification
|
Unit
|
Quantity
|
Ramarks
|
|
1
|
Suction Pipe
|
Φ100×20M
|
pc
|
2
|
|
|
3
|
Water Filter
|
FLF125
|
pc
|
1
|
|
|
4
|
Three-way distributor
|
FFS80
|
pc
|
1
|
|
|
5
|
Siamese
|
FJ125-2B1-1.6
|
pc
|
1
|
|
|
|
Soft-wall hose(Model-13)
|
Φ65×20m
|
unit
|
6
|
|
|
6
|
Soft-wall hose(Model-13)
|
Φ80×20m
|
unit
|
6
|
|
|
|
Soft-wall hose(Model-20)
|
Φ65×20m
|
unit
|
6
|
|
|
7
|
Soft-wall hose(Model-20)
|
Φ80×20m
|
unit
|
6
|
|
|
8
|
Shaped Joint
|
65/80
|
pc
|
7
|
|
|
9
|
Shaped Reducing Joint
|
Φ125/100mm
|
pc
|
1
|
|
|
10
|
Hose Bandage
|
FP470
|
pc
|
4
|
|
|
11
|
Hose Hoist
|
FG600
|
pc
|
4
|
|
|
12
|
Hose Bridge
|
FH80
|
pc
|
2
|
|
|
13
|
Ground Hydrantwrench
|
FB450
|
pc
|
1
|
|
|
14
|
Underground Hydrantwrench
|
FBA800
|
pc
|
1
|
|
|
15
|
Suction Wrench
|
FS125
|
pc
|
4
|
|
|
16
|
Dry Powder Extinguisher
|
MFZ2
|
pc
|
1
|
|
|
17
|
Fire Fighting Barrel
|
Iron
|
pc
|
1
|
|
|
18
|
Water Stream Branch
|
QZG19
|
pc
|
1
|
|
|
19
|
Multi-purpose Squirt Gun
|
QZW65
|
pc
|
1
|
|
|
20
|
Medium Pressure Squirt Gun
|
QZ200
|
pc
|
2
|
|
|
21
|
Reel Handle
|
|
pc
|
1
|
|
|
22
|
Fire Fighting Axe
|
GFP890
|
pc
|
1
|
|
|
23
|
Fire Fighting Shovel/Spade
|
2#
|
pc
|
1
|
|
|
24
|
Kelly Tool
|
GT06
|
pc
|
1
|
|
|
25
|
Spare Tool Box for Truck
|
|
set
|
1
|
|
