The
beiben 6*4 Fuel Tank Truck Series is normally transport the gasoline, diesel,
kerosene etc. and some other liquid fuel materials which do not corrode the oil
pump and fiscal ECR.
This
model results the equipment with few positive points as: good performance, good
structure, also operates simply.
Areas of Application and Use:
◆ Gasoline transport and
delivery
◆ Diesel
transport and delivery
◆ Kerosene transport and
delivery
◆ Other liquid fuel
material
◆ Mobile refueling
vehicle of Filling stations
Key Features:
◆ Carbon Steel, Stainless Steel, and
Aluminum Tanks Available
◆ Tanks can be Mounted to Any Customer
Desired Truck Chassis
◆ We use OEM fittings, makes the tanker solid and durable, and reduce the
cost to operate and maintain.
◆ Mobile refueling suit
for such remote area, also convenient supply for those heavy duty construction
equipment.
Technical Parameters:
1.0 Main Chassis Spec:
|
Name
|
Standard configuration
|
|
|
♦ Model:
|
CEEC5250GJY
|
|
|

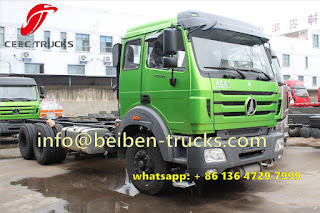

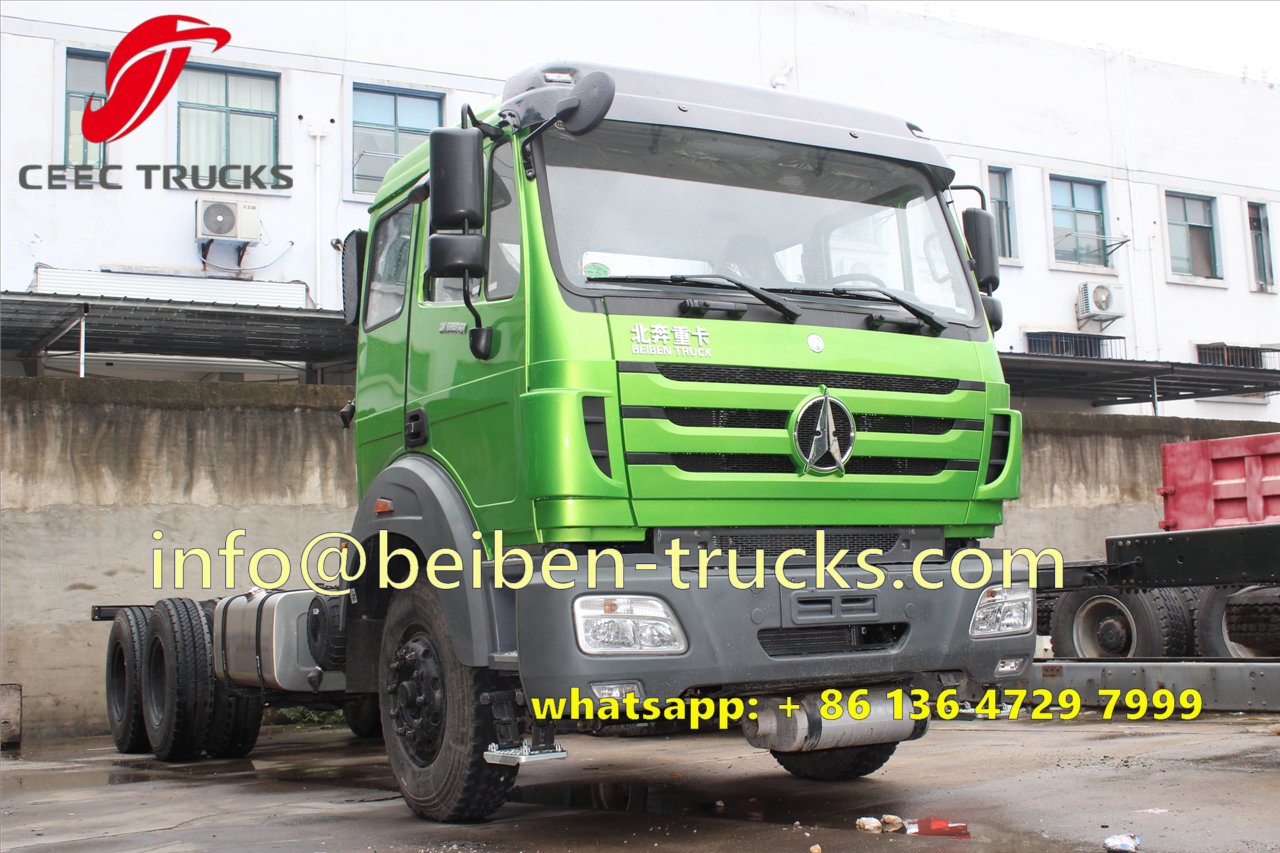

♦ Chassis
|
BEIBEN 6*4 truck
|
|
|
♦ Drive type:
|
6x4 left hand drive
|
|
|
♦ Wheel base
|
4450+1450 mm
|
|
|
♦ Dimension size (LxWxH)
|
9805×2480×3465mm
|
|
|

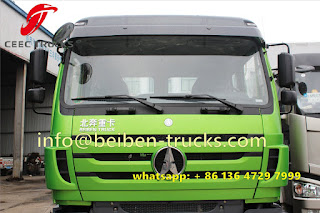

♦ Cabin Structure:
|
The all-steel stamping parts welded structure, install
double-row seat to rollover the double-cab hydraulic oil tanks overturned,
can be moved overturned forward
|
|
|
♦ Inside cabin equipment
|
automatic temperature control air conditioning system of
environmental protection (R134A refrigerant, without Freon), Radio + MP3. In
addition to the car equipment, the installation of P.O.T. controlled
switches, siren, alarms lights, indicator lights, sign lights, profile signal
controlled switches
|
|
|
♦ Number Of Seats
|
3+4 seats with Four-door
|
|
|
♦ Air condition
|
Yes
|
|
|
♦ Engine
|
Model
|
WP7.300E30
|
|
Power
|
250 Kw (340Ps)
|
|
|
Torque
|
1600/1450 N.m/r/min
|
|
|
Advantage
|
Beiben brand new engine,4
stork,6 cylinder, New
ultra high pressure common rail fuel injection system, strength of
electronically controlled cooled EGR system, electronically controlled
variable geometry turbocharger systems (VGS)
|
|
|
Fuel
|
Diesel
|
|
|
Displacement
|
9760 ml
|
|
|
♦ Transmission gear:
|
Fast 9-speed gearbox, suitable to all kinds of
roads, more fuel-efficient
|
|
|
♦ Front axle:
|
Reverse Elliot, I-Beam, Benz Technology
|
|
|
♦ Rear axle:
|
Single Reduction Banjo Design Full Floating, Benz technology
|
|
|
♦ Clutch
|
Single-plate dry coil-spring clutch, hydraulically
operating with air assistance
|
|
|
♦ Fuel tank
|
400 L
|
|
|
♦ Tyres:
|
12.00R20
|
|
|
♦ Curb Weight
|
11305 kg
|
|
|
♦ Brakes
|
Service brake:
dual circuit compressed air brake
Parking brake:
Spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
|
|
|
♦ Electrics
|
Operating voltage: 24V 120 AH Battery, negative
grounded
|
|
|
♦ Maximum Speed:
|
95 km/h
|
|
|
♦ Maximum gradeability:
|
37 %
|
|
B. Tank:
|
Name
|
Standard
configuration
|
|
♦ Tank volume
|
Full capacity 20,000L
|
|
♦ Transport medium
|
Fuel & oil & gas
|
|
♦ Tank Material
|
Carbon steel(Aluminium
alloy or Stainless steel are optional)
|
|
♦ Compartment plate
|
Nil
|
|
♦ Shell Body
|
5 mm nominal thickness
|
|
♦ Head
|
6 mm nominal thickness
|
|
♦ Tank shape
|
Ellipse
|
|
♦ Compartment
|
2 compartment (10,000-10,000L)
|
|
♦ Shell Finish
|
Shot blasted with 1 antirust, 1 base coat
and 1 finishing coat, the color of tank is according to customer requirement.
|
|
♦ Testing Pressure
|
36kPa,
standard water pressure test
|
|
♦ Logo & Color
|
Any
color and logos are FREE according to
our clients wish
|
C. Tank Fittings
|
Name
|
Standard
configuration
|
|
♦ Top inlet port:
|
Nil
|
|
♦ Manhole Cover:
|
Carbon steel.
|
|
♦ Outlet port:
|
One pneumatic sea valve which at the front of tank, the
size of outlet port is 3 inches, fix all connector.
|
|
♦ Pipe box:
|
It made of PVC material, round shape which on the both
sides of tank, one plastic pipe (5m)
|
|
♦ Anti – Static System:
|
Static electricity plate , copper plate and earth cable
reel.
|
D. Tank Accessories
|
Name
|
Standard
configuration
|
|
♦ Ladder:
|
Excellent carbonsteel ladder fixed at rear of tank
|
|
♦ Walkway
Platform:
|
It fixed on the top of tank with anti – skid surface
treatment.
|
|
♦ Handrail:
|
No
|
|
♦ Fire
Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|
|
♦ Pump
Device
|
Yes
|
|
♦ Flow meter
|
Yes
|
|
♦ Tool box
|
Small box
|
E. Control:
|
Standard
configuration
|
|
|
♦Control
|
Provide all easy
and reliable control system
|
|
♦ Assembly
|
All the controlling devices and where to be fixed are all
confirmed
after we talked with our customers
|
|
♦ Control
|
All the control devices are in one water proof box.
|
|
♦ Marks
|
Make clear marks on the necessary places of the whole truck
|
F. Inspections & Training:
|
Name
|
Standard
configuration
|
|
♦ Factory
inspection
|
Customer can
inspect the trucks in manufactures factory when completed, then arrange the balance
payment.
|
|
♦ Operation Manual
|
English Version
|
|
♦ Training fee
|
Two FREE days training in factory
|
|
♦ Training
type
|
Required training about using the equipment will be given
by the manufacturer to the related workers in the superstructure area
|
