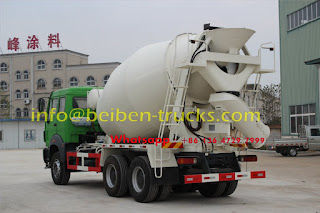

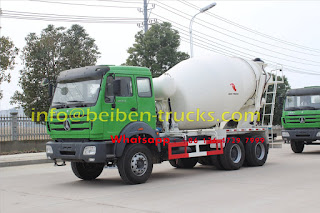

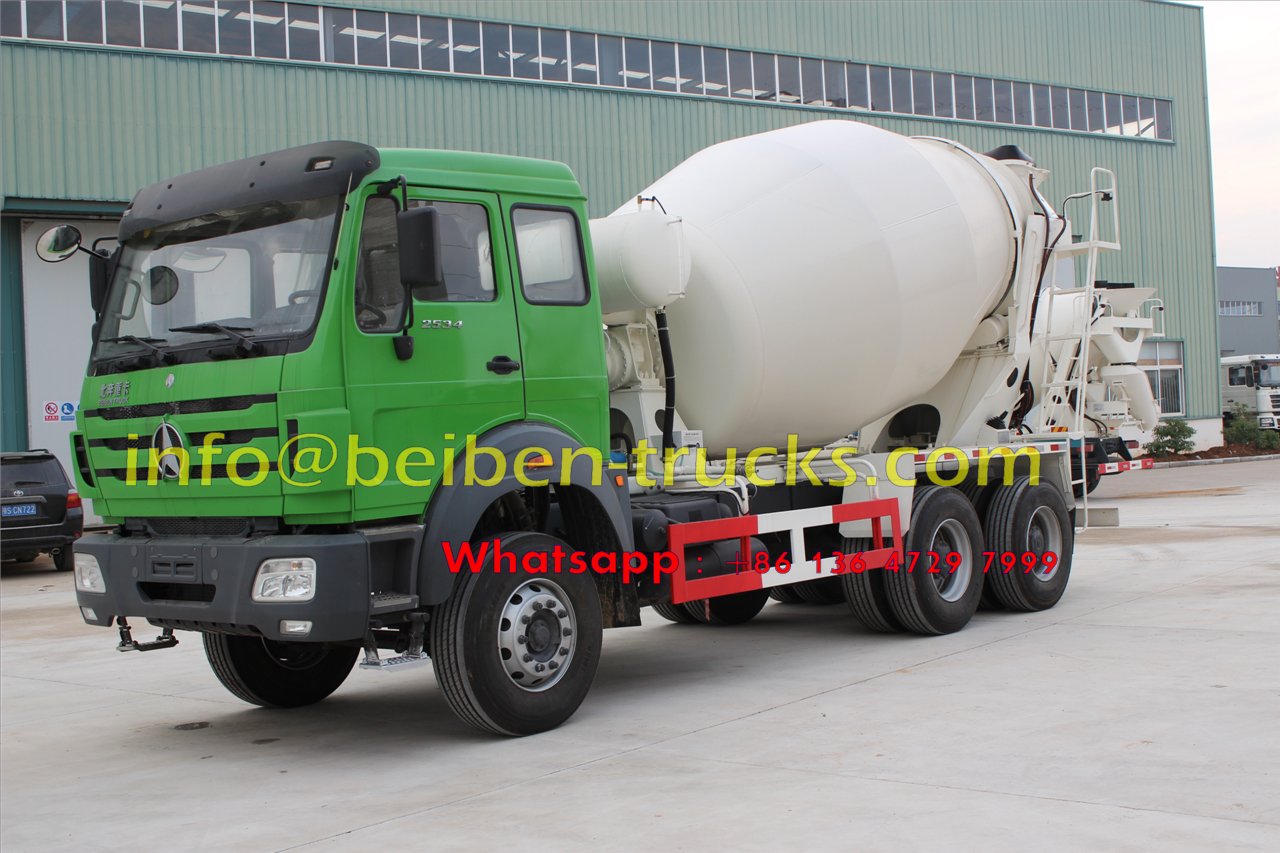

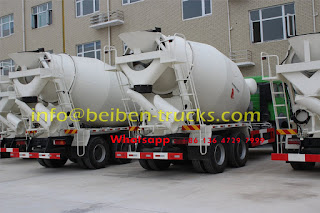

| Beiben 2534 concrete mixer truck |
Description:
The Beiben NG80 concrete mixer is specially designed
for mixing and carrying the concrete to the construction worksites. All cement
mixer trucks are constructed with high-tensile steel for endurance and
resistance to friction, it’s very easy to operation.
Key
Features:
◆ World-class Beiben Chassis, High power and Fuel
efficiency, Reliability, Uptime
◆ The hydraulic system adopts Germany Rexroth,
America EATON, Italy ARK, America Sauer;
◆ Comfortable, spacious cabin
with heating and air conditioning, high-grade stereo and sleep area.
◆
The mixing drum is made from the special close grain high-hardness
steel plate B520JJ which is produced by Shanghai Baosteel and its service life
can last 8-10 years;
◆ Equipped with the large
diameter hopper, it can realize the quickly feeding, not plugging and spilling,
and it is easy to clean;
◆ The optimized design of
mixing drum ensure the concrete residue ratio is less than 1%;
◆ Mixer coverage 3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.
Detail
Technical Parameters:
A. Truck:
|
Name
|
Standard configuration
|
|
|
♦ Model:
|
Beiben ND5250GJBZ15
|
|
|
♦ Drive type:
|
6x4 Left hand drive
|
|
|
♦ Wheelbase
|
3800+1450 mm
|
|
|
♦ Cab type:
|
All-steel-welded construction, power tilting cab; spring suspensions
with hydraulic shock absorbers. The color is white.2 seats, AM/FM CD/MP3 Player
|
|
|
♦ Air condition
|
Yes
|
|
|
♦ Engine
|
Model
|
WP10.340E40
|
|
Type
|
6-Cylinder in-line, 4-Cycle, Water-cooled, OHC, Turbo with intercooler
|
|
|
Max power
|
250 kw (300hp)
|
|
|
Max torqu
|
1580/1450 N.m/r/min
|
|
|
Displacement
|
9.8 L
|
|
|
♦ Transmission
|
Fast brand 9-shift Manual, 9 forward and 1reverse speed
|
|
|
♦ Fuel tank
|
400 Liters
|
|
|
♦ Tyres:
|
12.00R20
|
|
|
♦ Maximum drive speed:
|
90 km/h
|
|
|
♦ Max.Gradeability
|
301%
|
|
|
♦ Truck Curb Weight
|
12870 kg
|
|
|
♦ Overall Dimension
(LxWxH)
|
9900x2500x398 mm
|
|
B. Mixer drum:
|
Name
|
Standard configuration
|
|
♦ Material of tank body:
|
Q345B high strength, wear resistant steel
|
|
♦ Material of spiry blade:
|
Baosteel Q345B high strength, wear resistant steel
|
|
♦ Geometric volume
|
13.4 m3
|
|
♦ Mixing concrete volume
|
8 m3
|
|
♦ Operating speed
|
0~14 rpm
|
|
♦ Feeding speed
|
≥3 m3/min
|
|
♦ Maximum Diameter inside drum
|
2310 mm
|
|
♦ Angle of
inclination
|
12.4 degree
|
|
♦ Slump scope
|
40-210 mm
|
|
♦ Discharge speed
|
≥2 m3/min
|
|
♦ Discharge
residual percentage
|
＜1%
|
C. Hydrauic system
|
Name
|
Standard configuration
|
|
♦ Hydraulic oil pump
|
PMP from
Italy (Import with
original packaging)
|
|
♦ Hydraulic Motor
|
PMP from
Italy (Import with
original packaging)
|
|
♦ Speed
reducer
|
PMP 6.5SP (Import with
original packaging)
|
|
♦ Hydraulic
circuit :
|
Close circuit
|
|
♦ Cooler type/tank volume
|
Famous
KAITONG brand 25L (optional AKG
or Italy brand)
|
D. Water supply & Control system:
|
Name
|
Standard configuration
|
|
♦ Water tank
capacity :
|
350 L
|
|
♦ Water
pressure (bar):
|
3.8
|
|
♦ Water supply
model :
|
Pneumatic
water supply
|
|
♦ Control mode :
|
Mechanical control system at both left and right
|
|
Name
|
Standard configuration
|
|
♦ Outside
Sandblasting
|
All the steel and stainless steel parts are sandblasted
before painting
|
|
♦ Painting
|
Primer and final painting by Robot
|
|
♦ Logo
|
All logos are FREE according to our clients wish
|
F. Inspections & Training:
|
Name
|
Standard configuration
|
|
♦ Factory
inspection
|
Customer can inspect the trucks in manufactures factory
when completed, then arrange the balance payment.
|
|
♦ Operation
Manual
|
English Version
|
|
♦ Training fee
|
Two FREE days training in CEEC factory
|
