Beiben 2534 tipper

FOB Price $45,000-56,000
Production time 40 days
Payment terms T/T, West union

enquiry

Beiben 2534 tipper truck

Function:

◆ Heavy duty Mining area

◆ Construction site

◆ Municipal road construction

◆ Transport of heavy density stone, sand, gravel,mine

Feature:

◆ Extrmely reinforced Germnany benz technology dump truck chassis, super reliablity assurance.

◆ Weichai diesel 340Hp engine combined with original benz typerear axle reducer gear and differential gear

◆Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.

◆ Enhanced Q550A U type dumper body, and the motherboard adopts variable cross-section beams.

◆ Special beiben WELLDOX and HARDOX tipper Body Design are optional

◆ 15 years great experiences on beiben dump truck upper structures designing and supplying.

Specification:

Similar key words: beiben 70 T dump truck, north benz 2534 70 T dumper truck supplier, china baotou beiben 2534 tipping truck, kenya beiben 40 T dump truck, kenya beiben dumper supplier, congo beiben 40 T dumper supplier, beiben camions benne supplier, africa beiben 2534 tipping truck price, best beiben 2534 dump truck price.

Best supplier of beiben 6*4 drive dump truck, beiben 6*6 dump truck, we have more than 20 years experience in manufacturing beiben 2527,2529,2532,2534,2538 dumper. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck, beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks. .

The best north benz dump truck supplier from china baotou beiben heavy duty dump trucks. The most professional beiben dump truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 dump trucks. Currently, we supply beiben LHD dump truck with 2534 cabin, beiben RHD dumper with 2534 cabin. Also beiben off road dumper , beiben mining dump trucks are also avaiable .

Beiben 2534KY tipper truck

Beiben 2534KY tipper/6×4/4450+1450/Long Cab/LHD
Dimension			911025003430mm
Upper body inner dimension			6500x2300x1050 sand body, Hyva hydralic lifting system,thickness: bottom 8mm, side 6mm
Approaching angle/Departure angle			26/45°
Overhang(front/rear)			1410/1800mm
Wheel base			4450+1450mm
Max speed			85km/h
Curb weight			12190kg
Loading capacity			12680kg
Slope climbing capability			Max.40%
Engine		Model	WP10.340E32，water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection
		Displacement	9.726L/Diesel
		Stroke	126/130mm
		Max. power	250/2200 (kw/rpm)
		Max.torque	1350/1200-1600（Nm/rpm）
		Emission stantard	EuroⅢ
Fuel tanker capacity			300L
Clutch			∮430, Single dry frictional disc，Hydraulic boosting
Gearbox			9JS150A, mechanism,9 forward gears,1 reverse gear, manual operated,
Gear ratio of gear box			12.57/8.39/6.15/4.59/3.4/2.47/1.81/1.35/1.00 R:13.14
Suspension system		Front	Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs
		Rear	Non-free standing stablization spring, balance suspension system, 13pcs
Brake system	Service brake		Brake gap can be adjusted automatically, double circulation air brake system
	Assistant brake		Engine exhaust brake
	Park brake		Potential springs pressing on middle and rear wheels
Steering system			ZJ120D,whole circulation in ball, hydraulic booster
Frame			Strengthened Streight beam
Front axle (Mercedes Technology)			Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Technology)			Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

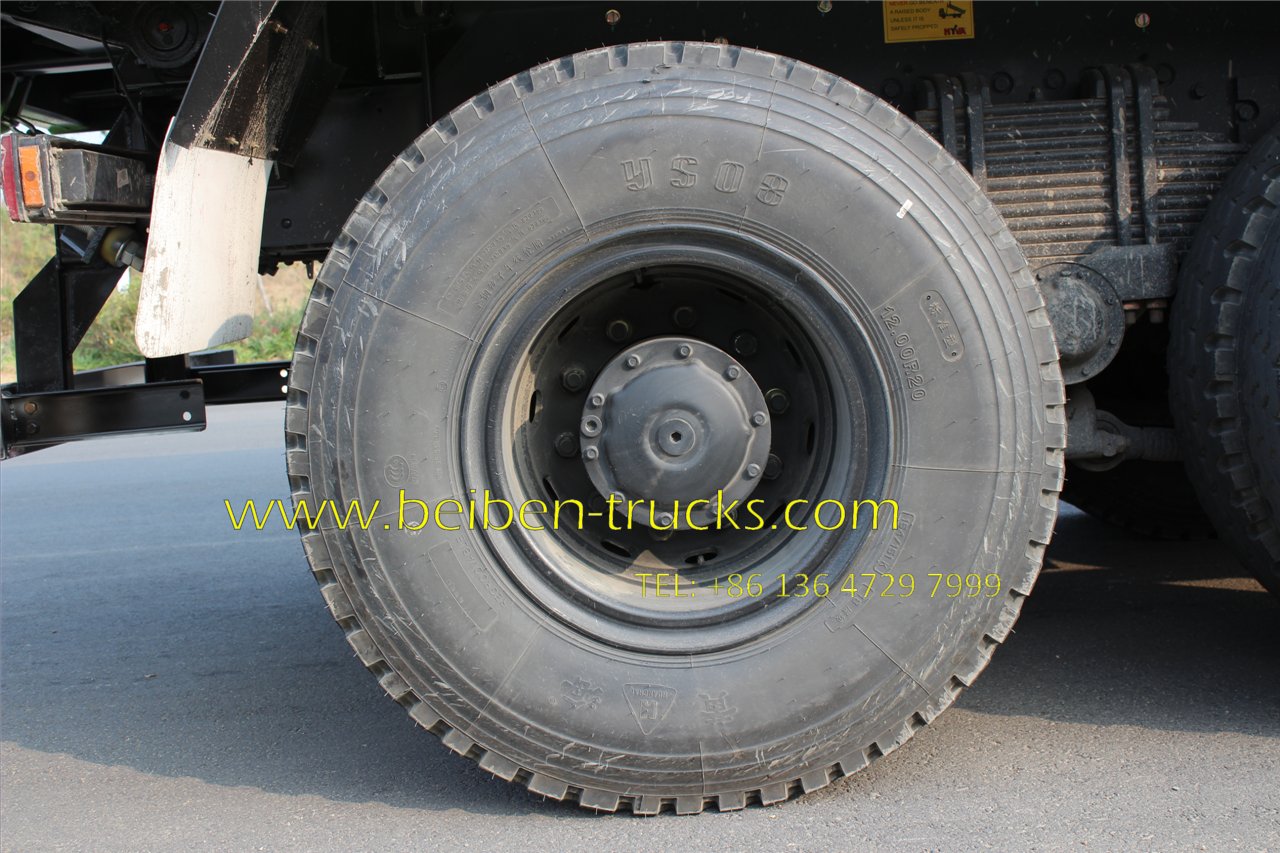

Tyre			12.00R20 Radial
Electrical system	Battery		2X12V/135Ah
	Generator		28V-35A
	Starter		5.4Kw/24V
Cabin			NG80B Long cabin with single sleeper ; Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C

Beiben dump truck

Model	Engine Model	Rated Power	Payload	Driving Mode
Beiben 2538	WP10.380N	380 Hp	60 Ton	6*4
Beiben 2534 KY	WP10.340	340 hP	50 Ton	6*4
Beiben 2534	WP10.340	340 Hp	30 Ton	6x4
Beiben 2534k	WP10.340	340 Hp	36 Ton	6*4
Beiben 2538k	WP10.380	380 Hp	40 Ton	6*4
Beiben 2529	WP10.290	290 Hp	45 Ton	6*4
Beiben 2538k	WP10.380	380 Hp	40 Ton	6*4
Beiben 2538	WP10.380N	380 Hp	45 Ton	6*4
Beiben 2529	WP10.290N	290 hp	30 Ton	6*4
Power star 2628	WP 10.280N	280 Hp	40 Ton	6*4
Beiben 2629	WP 10.290N	290 Hp	40 Ton	6*4
Beiben 2634	WP 10.340N	340 Hp	35 Ton	6*4
Beiben 2629 dumper	WP 10.290N	290 Hp	35 Ton	6*4
Beiben 2629 A	WP10.340	340 Hp	40 T	6x4
Beiben 2629 A	WP10.290	290 Hp	25-30 T	6x4

Watch Beiben 2534 tipper on YOUTUBE.

Beiben 2534 tipper in Road testing:                  https://youtu.be/Pmu0J7s0-4E
                                                                    https://youtu.be/AZeGfFTSahU

Beiben 2534 dump truck in inspection:       https://youtu.be/LmqjZAeh7rs
                                                         https://youtu.be/aqGrLtEFPpI
                                                                      https://youtu.be/TvY48R-FFqA
