Beiben 2529 dumper

Beiben 2529 dumper

  • FOB Price $40,000-50,000
  • Production time 40 days
  • Payment terms T/T, West union
enquiry

Beiben 2529 dump truck

beiben 2529 dump truck supplier
Function:

  Sand, earth, Gravel transportation
  Construction site project.
  Municipal road construction
  Transport of light density stone, sand, gravel

Feature:


  Super reliable benz dumper technology, 100 years quality assurance.
Famous weichai engine combined with original benz typerear axle reducer gear and differential gear
Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
Special beiben tipper Body Design are optional
15 years great experiences on beiben dump truck upper structures designing and supplying.


Similar key words: beiben 2529 dump truck, beiben 2529 tipper, congo beiben dumper supplier, congo beiben tractor truck supplier, north benz 2529 dump truck, north benz 2534 dump truck supplier, china beiben dump truck supplier.

beiben 2529 dump truck supplier

Authorized beiben 2529dump truck manufacturer in china, we produce good quality beiben 290 hp engine tipper truck, north benz 2529 dump truck. CEEC TRUCKS plant supply more than 200 units kind of beiben earth transportation truck to congo, kenya, ghana, algeria, nigeria, ethopia, myanmar,thailand. We welcome foreign customer to visit our beiben dump truck plant.
  beiben 2529 dump truck supplier
  The best north benz dump truck supplier from china baotou beiben heavy duty dump trucks. The most professional beiben dump truck work experience on beiben 2527,2628,2632,3630,2629,2634,2638 dump trucks. Currently, we supply beiben LHD dump truck with 2534 cabin, beiben RHD dumper with 2534 cabin. Also beiben off road dumper , beiben mining dump trucks are also avaiable .

 Beiben 2529 dumper


Beiben Dumper Body
Body type
Rectangle reinforced standard body
(more body type refer to using environment)
Inner size
5600x2250x1400 mm
Side/front/tail plate thickness
  4 mm Q235A carbon steel
Deck plate thickness
  6 mmQ235A carbon steel

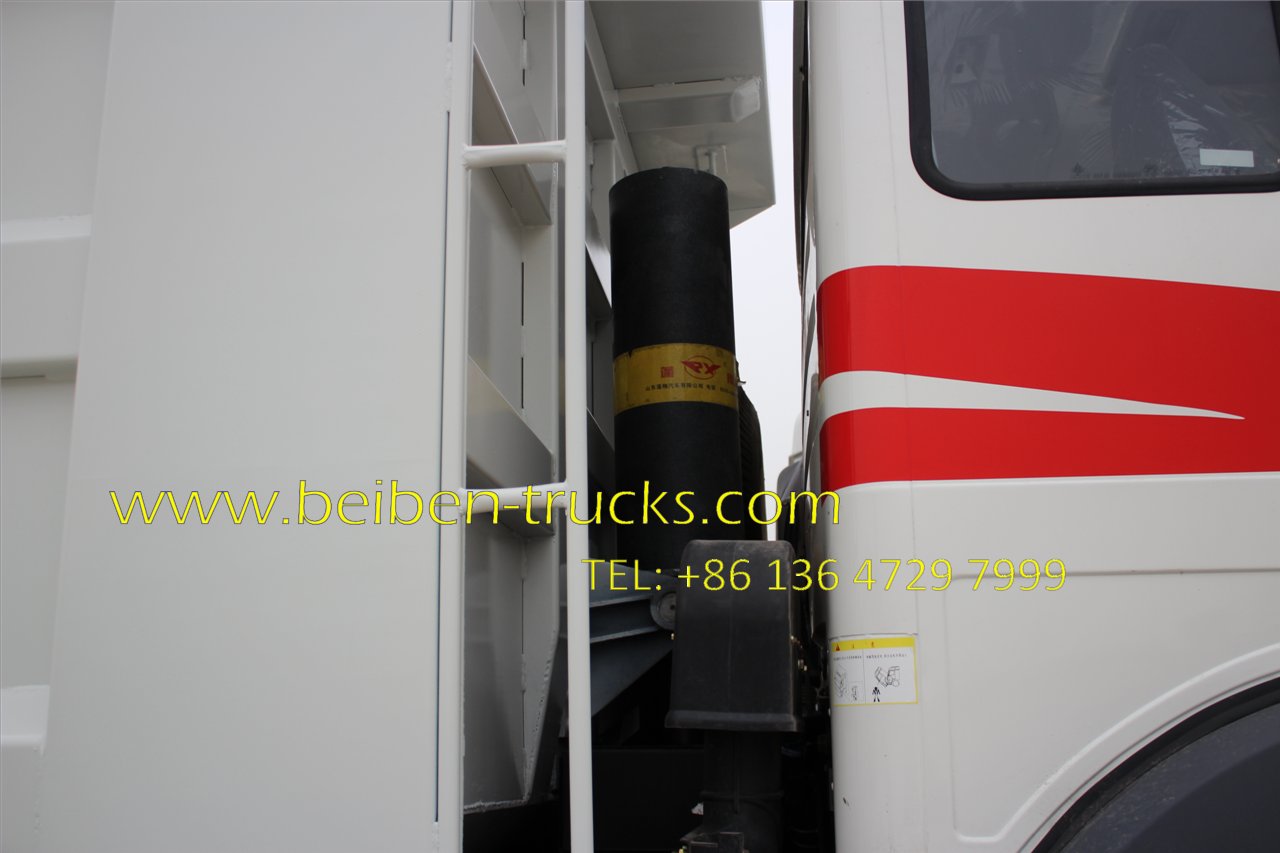

Lifting system,
HYVA 149 famous hydraulic lifting system
Lifting Type
Middle tipping
Tipper body lifting time,
≤ 20 S
Tipper body Falling Time
≤ 20 S
Max. lifting angle
52°
Sales No. 2629GKY
Dimension(mm) Long 8250

Wide 2500

High 3690
Wheel base(mm) 3800+1450
Drive 6×4
Engine Model WP10.290E32
Cabin NG80B/Long cab
Clutch(mm) Φ430
Front Axle 7.5T
Rear/Mid Axle Model/speed radio Double Reduction Driving Axle /5.263
Steering System ZF8098
Braking System Dual Circulation Air Brake System
Fuel Tank(L) 400L
Frame/mm 317×70×8.5+7+8mm
Tire 12.00R20
Front/Rear Overhang 1410/1590
Transmission Fuller 9JS150TA
Curb Weight(kg) 12470
Up Body Volume(m³) 5.6mx2.3mx1.3m
Max Speed(km/h) 90

beiben 290 hp engine dumper

beiben 290 hp engine dumper

 beiben 290 hp engine dumper

beiben 290 hp engine dumper

beiben 290 hp engine dumper

Beiben dump truck



Model
Engine Model
Rated Power
Payload
Driving Mode
WP10.380N
380 Hp
60 Ton
6*4
WP10.340
340 hP
50 Ton
6*4
WP10.340
340 Hp
30 Ton
6x4
WP10.340
340 Hp
36 Ton
6*4
WP10.380
380 Hp
40 Ton
6*4
Beiben 2529
WP10.290
290 Hp
45 Ton
6*4
WP10.380
380 Hp
40 Ton
6*4
WP10.380N
380 Hp
45 Ton
6*4
Beiben 2529
WP10.290N
290 hp
30 Ton
6*4
Power star 2628
WP 10.280N
280 Hp
40 Ton
6*4
WP 10.290N
290 Hp
40 Ton
6*4
WP 10.340N
340 Hp
35 Ton
6*4
WP 10.290N
290 Hp
35 Ton
6*4
WP10.340
340 Hp
40 T
6x4
WP10.290
290 Hp
25-30 T
6x4
