Using mercedes benz technology Beiben 10 wheel 9 cubic meters concrete truck

Using mercedes benz technology Beiben 10 wheel 9 cubic meters concrete truck

inquiry_ico
Product Details
Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck
Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck
Advantages
  • One-stop shop, thousand kinds of products with military quality for you to choose
  • Most competitive and reasonable price, ready to develop together with customer
  • Reliable and effective performance, time=money
  • Great after-sales service system, back you up all the time
Product Description

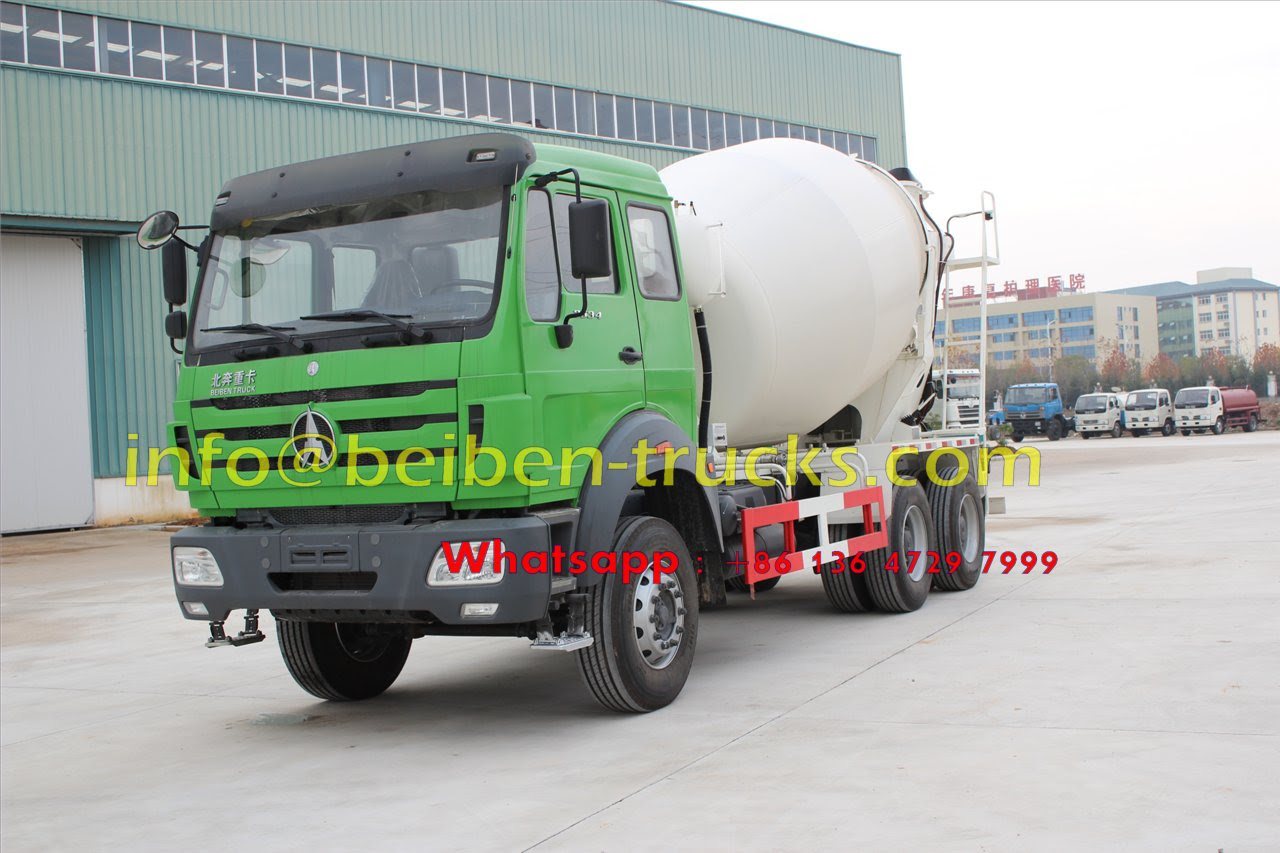

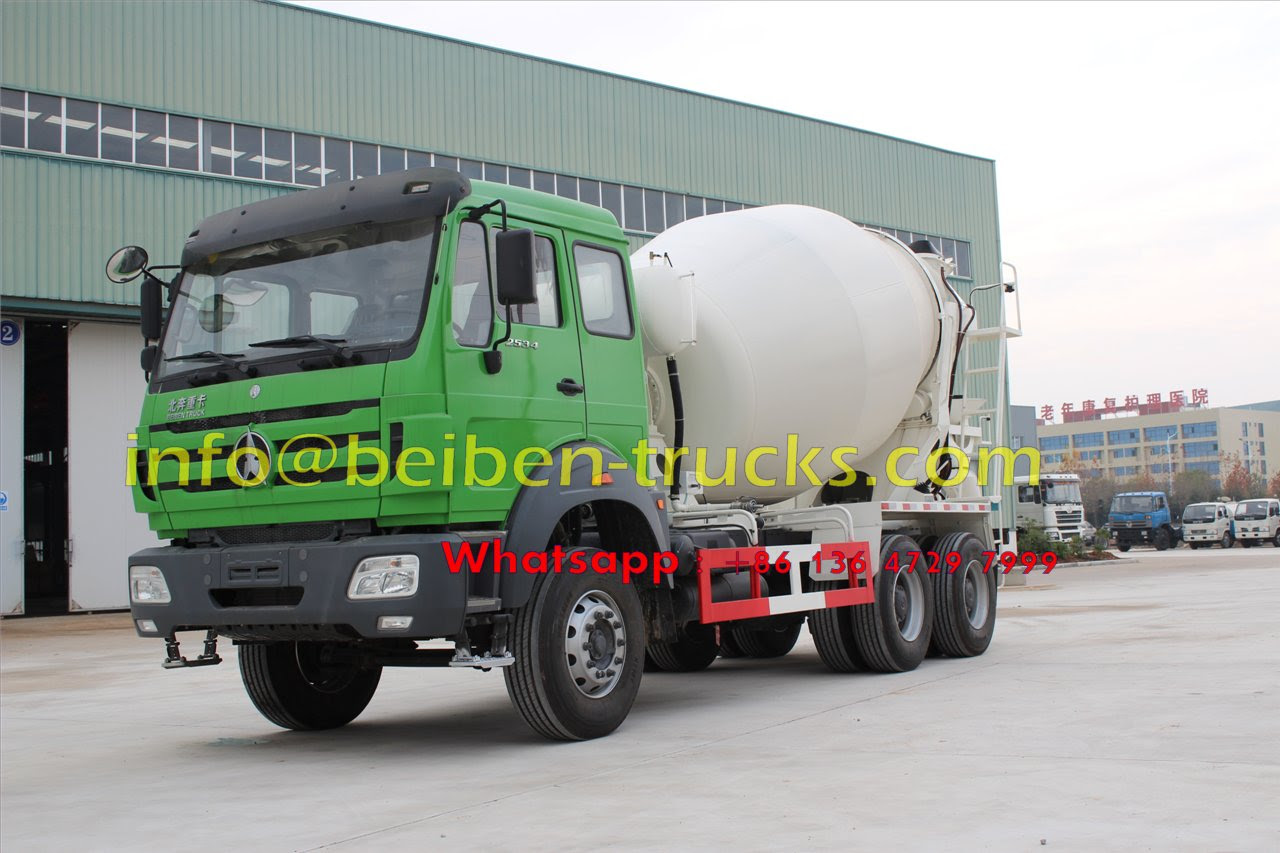

Beiben 5m3 concrete mixer truck ND5256GJBZ



Whole Vehicle Parameters
Chassis
BEIBEN
Curb weight (kg)
12780
Total vehicle weight (kg)
25000
Overall dimensions (L*W*H)
9400x2500x3900
Wheelbase (mm)
4100+1450
Front overhang (mm)
1410
Rear overhang (mm)
2640
Max. Traveling speed (km/h)
85




Vehicle Configuration
Clutch
Dry single dis clutch (Φ430)
Gearbox
FAST 9T-1680
Driving type
6x4
Steering mechanism
TAS85
Service brake
Dual-circuit air brake
Parking braking
Spring-powered Air-cut-off brake
Auxiliary brake
Engine exhaust brake
Tire
12.00R20 radial tire




Engine Parameters
Model
WP10.340E32
Feature
Diesel, 4 stroke,
Direct injection,
6 cylinder in line,
Turbo-charging, Inner cooling
Emission standard
Euro 3
Max power (kw)
340hp
Max torque (N.m)
1500



Mixing Drum Parameters
Max mixing cubage (m³)
5
Feeding speed (m³)
3.5
Discharging speed (m³)
3
Leftover rate
Nearly Zero
Max Rotating Speed (R/min)
14-16
Mixing Drum Obliquity (°)
10
Max mixing drum diameter (mm)
Φ2412

Driving System
Hydraulic Pump
Italian TOP089
Hydraulic Motor
TOP 089
Speed reducer
TOP P68
Water supply mode
Water pump; pneumatic pump
Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck
Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck

Using mercedes benz technology Beiben 10 wheel 5 cubic meters concrete truck
beiben 9 CBM concrete mixer truck manufacturer
beiben 9 CBM concrete mixer truck manufacturer
beiben 9 CBM concrete mixer truck manufacturer
