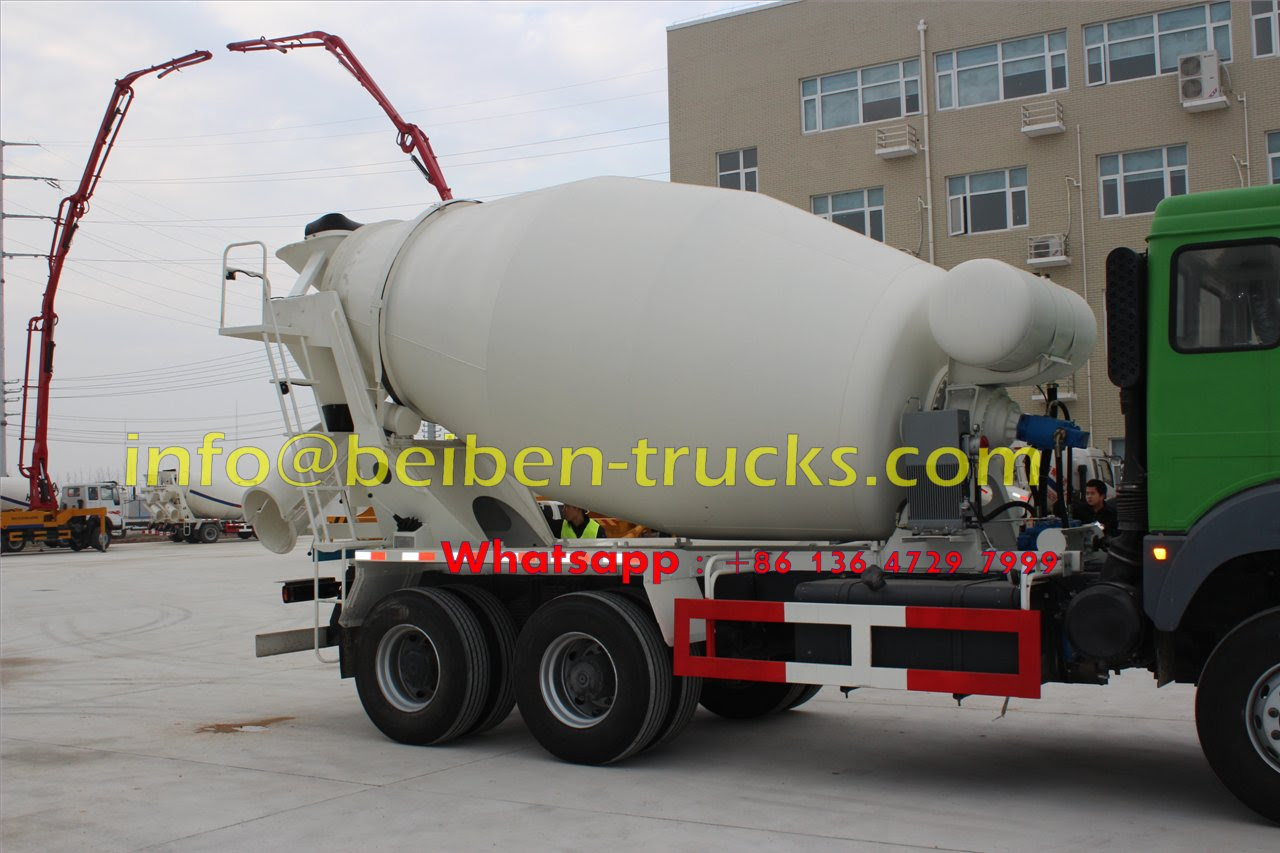

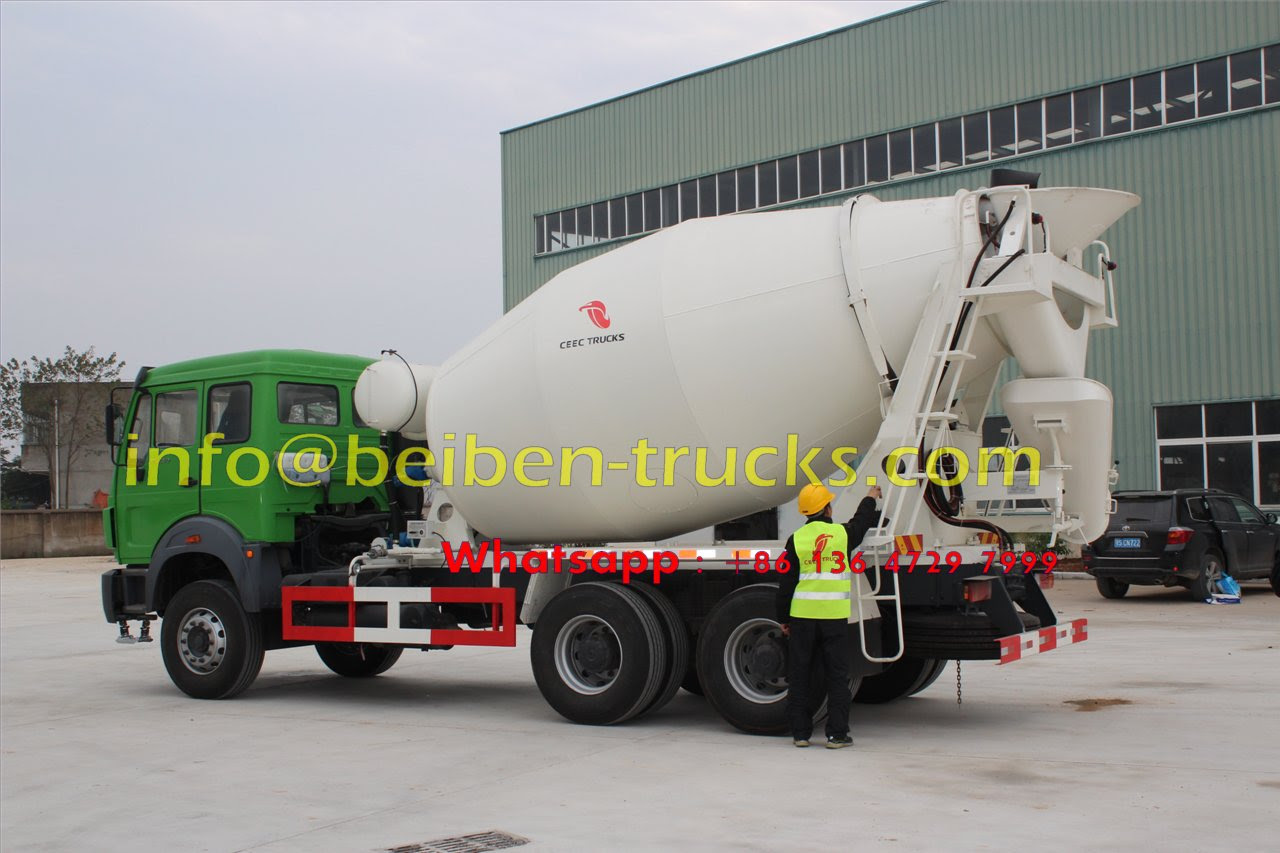

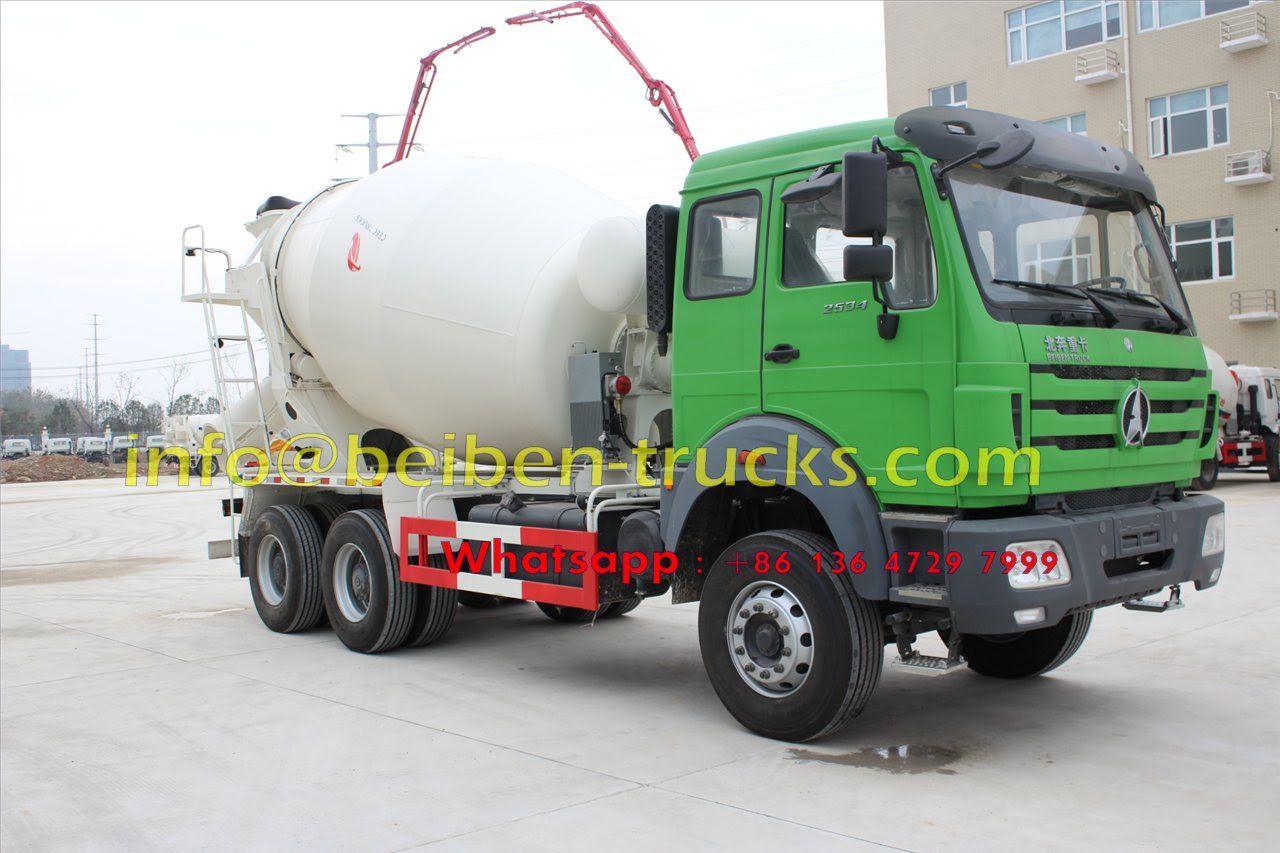

North Benz NG80 6x4 concrete mixer truck cement truck
Product Details
North Benz NG80 6x4 concrete mixer truck cement truck
Engine: WP10.340hp
Mixing volume: 4--6cbm
Residual ratio: nearly zero
Engine: WP10.340hp
Mixing volume: 4--6cbm
Residual ratio: nearly zero
Product Description
Model
|
6x4 4.5m3 concrete mixer truck
|
|
Whole Vehicle Performance & Parameters
|
Chassis
|
BEIBEN
|
Curb Weight (Kg)
|
12870
|
|
Total Vehicle Weight (Kg)
|
25000
|
|
Outline Dimension(L*B*H) (mm)
|
9400x2500x3900
|
|
Wheelbase (mm)
|
4100+1450
|
|
Front Overhang (mm)
|
1410
|
|
Rear Overhang (mm)
|
2640
|
|
Max
Traveling speed
|
85
|
|
Vehicle Configuration
|
Clutch
|
Dry Single Disc Clutch (φ430)
|
Gear Box
|
FAST 9T-1680
|
|
Driving Type
|
6x4
|
|
Steering Mechanism
|
TAS85
|
|
Service Brake
|
Dual-circuit Air Brake
|
|
Parking Braking
|
Spring-powered Air-cut-off Brake
|
|
Auxiliary Brake
|
Engine Exhaust Brake
|
|
Tyre
|
12.00R20 radial tyre
|
|
Engine Parameters
|
Model
|
WP10.340E32
|
Type
|
Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
|
|
Emission Standard
|
Euro 3
|
|
Max Power (KW)
|
340HP(2200r/min)
|
|
Max Torque
|
1500 N.m
|
|
Mixing Drum Parameters
|
Max Mixing Cubage (m3)
|
4.5
|
Feeding Speed (m3)
|
≥3.5
|
|
Discharging Speed (≥m3)
|
≥3
|
|
Leftover Rate
|
Nearly Zero
|
|
Max Rotating Speed (r/min)
|
14---16
|
|
Mixing Drum Obliquity (°)
|
10
|
|
Max Mixing Drum Diameter (mm)
|
φ2412
|
|
Driving System
|
Hydraulic Pump
|
Italian TOP089
|
Hydraulic Motor
|
TOP 089
|
|
Speed reducer
|
TOP P68
|
|
Water supply mode
|
Water pump; pneumatic pump
|
|
