Cheap price for 50T, 60T, 70T bogie suspension container semitrailer . CEEC TRUCKS plant

China best 50T, 60T, 70T bogie suspension container semitrailer manufacturer in china. We are the best supplier of bogie suspension container semitrailer supplier for congo, pointe noire seaport.

CEEC trucks have more than 15 years on manufacturing 2 axle bogie suspension semitrailers. We have great experience in producing 50 T bogie suspension semitrailer, 60 T bogie suspension semitrailer, and 80 T bogie suspension semitrailer.

Our bogie suspension semitrailer product include 2 axle bogie suspension container semitrailer, 2 axle single point suspension cargo semitrailer, 2 axle bogie suspension tipper semitrailer, 2 axle bogie suspension cement semitrailer.

As the china best bogie suspension semi remorque manufacturer, we have exported more than 2,000 units kinds of bogie suspension semitrailers to africa country, such as CONGO, ALGERIA, NIGERIA, ANGOLA, GHANA, TANZANIA, KENYA , DUBAI , DOHA.



40Feet 2Axles Bogie suspension Container Semi-trailer (12 pieces Twist Lock)
DIMENSIONS
Tare Weight	5000kg
Payload	35000kg
Total Weight	40000kg
Overall Length	12400mm
Overall Width	2480mm
Overall Height	1480mm
Wheel track	1840mm
Wheel base	8350mm+1300mm
STANDARD SPECIFICATION
Main Frame	Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes 505mm Height, Top Flange 14mm,width 140mm; Middle Flange 6mm;Bottom Flange 16mm,width 140mm
Axle	Two Units of Germany BPW(brand) 13Ton axle,15T axle, 16Taxle

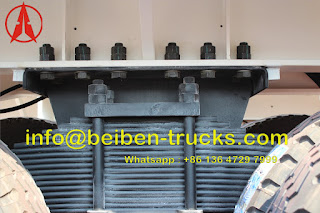

Suspension	Germany BPW  (brand) mechanical 2-axle suspension
Leaf Spring	Four sets of reliable local brand, 7-piece leaf spring,16x90mm
King Pin	One unit of 2`` SAE standard bolted-in kingpin

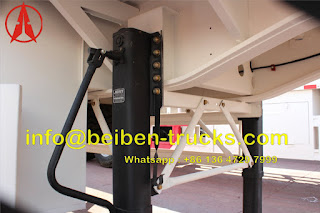

Landing Gear	JOST-D200,Two-speed manual operation, heavy duty landing gear
Wheel Rim	Eight units of 8.0-20 rim
Tyre	Eight units of 12.00R20 nylon tyre
Twist Lock	12 pieces---four pieces are fasten mode, eight pieces are up-down mode, of ISO twist lock for 2x20ft;1x40ft container, central locks can be laid down.
Spare Wheel Carrier	One set of spare wheel carrier including a riser.
Pneumatic Braking System	One unit of WABCO RE 6 relay valve; four units of T30/30 spring brake chamber; one unit of reliable local brand 40L air tank ; two units of reliable local brand standard coppery air-connector.
Electrical System	One unit of JAEGER POWAY ,24V 7-pin ISO 1185 socket; two sets of reliable ,local brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of DAFA(brand ) 6-core standard Cable.
Painting	Sand blasting before painting;
	two coats of primer, anti corrosion;
	one coat of finish painting;
	Color advised by client.
Accessory	One box with a set of standard trailer tool
For the specification above, we reserve the right to make any changes without notice.
