Beiben 70t 380HP Mining Dump Truck (7038KK)

 Beiben 70t 380HP Mining Dump Truck (7038KK)





























BEIBEN North Benz mining dump truck

1.Good price from factory
2.High quality
3.Quick delivery
4.Spare parts for sale too


INTRODUCTION:

The vehicles adopts offset driving cabs with single door and single seat, used for mining. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, strengthened structure, all making it suitable for the transportation of heavy goods , used as engineering machinery, under poor working condition such as in mine.


Beiben Mining dump truck 7042KK

model7042KK
driving model6×4
gross weight70000
(Kg) curb weight28500
(Kg)load capacity41500
(Kg)Front\rear axle load capacity25000/40000/40000
exterior dimension8630X3600X3950
(mm) wheelbase3775+1700
(mm) threadbase2866/2690
(mm) front/rear suspension1590/1535
(Km/h)top speed42
max. slope climbing capacity30%
(m) turnning diameter≤23
approching angle≥30°
departure angle≥40°
(mm) min.ground clearance330
enginemodelWD12.420
typewater-cooled,6 cylinders in line,tubocharge,intercool
stroke x broe126×155
(L) displacement11.596
(KW/r.p.m)rated power309/2200
(N.m/r.p.m)max. torque1750/1300-1600
clutchdouble∮400
gearboxmodelManual ,mechanical gearbox,9 forward gear,1 reverse gear
(N.m)permission input torque2200
tranmission ratioforward gear12.44; 8.31; 6.09; 4.54; 3.36; 2.47; 1.81; 1.35; 1.00; reverse gear 12.99
axlefront axle(25T),middle and rear axle ratio12.95(BEIBEN 40T)
steering system.Hydralic boosting steering,whole circulation in ball type
brake systemdouble circulation air brake,three sets of braking system
service brake-contrallable double circulation foot brake
parking brake- hand controlled blow-down springs brake
engine exhaust brake
frameDouble-layer composite,the same width 1020mm frame,dimension of section 320x90x8+8(mm), Full- wide straight frame with section of 330 x 80 x 16(8+8)mm, All frame and cabin were stamped by large-scale precision hydraulic press for the one-time molding.


front suspensionThe longitudinal lay-out style of 13 parabolic leaf-springs, shock absorb
rear suspension13 parabolic leaf springs with no-independent style balance suspension
cabOffset cabin, Full steel skeleton structure, covered with double layer steel plate, can be tipped forwardly, with air suspension seat for driver. Fully-integrated structure instrument panel , Internal A/C, Radio ,MP3 Player, air horn, sun visor, rear mirror, wiper, gauges (with color indication for safe and unsafe working), monitoring and working signals are conveniently,located within easy reach of the operator.
electronics systmestorage battery2×165Ah
generator1500W,28V×55A
starter5.4KW
rated voltage24V
audio deviceMP3(SD/USB)

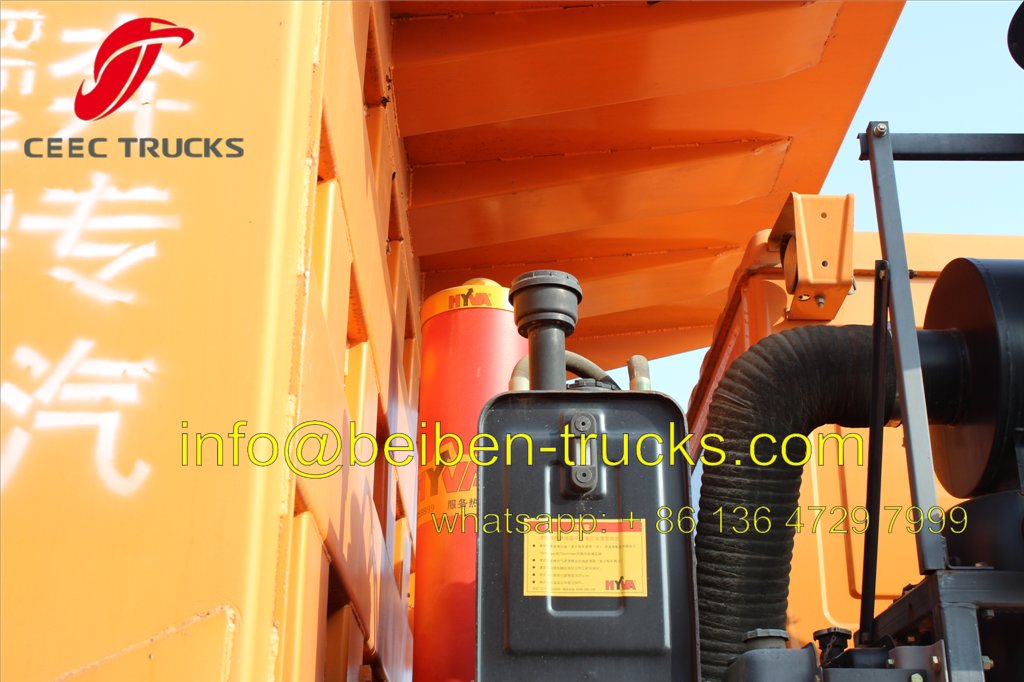

Dumper bodyfront lifting body,body dimension5.6x2.9x1.6m,bottom steel thinkness 14mm with 5 longitudinal frame,edge steel thinkness10mm(material 16Mn),upright front steel with 10mm rear door. 8mm thinkness frame on rear door.four wrap angle,upside and downside hinge,HYVA 172pump
A/Cheat from engine coolant system
Inner A/C
TYRE14.00-25
fuel tanker400L


Beiben Mining dump truck 5538KK
model5538KK
driving model6×4
(Kg) gross weight55000
(Kg) curb weight22000
(Kg)load capacity33000
(Kg)Front\rear axle load capacity13000/47000
(mm)exterior dimension8470×3100×3850
(mm) wheelbase3500+1600
(mm) threadbase2497/2228
(mm) front/rear suspension1590/1740
(Km/h)top speed55
max. slope climbing capacity30%
(m) turnning diameter≤22
approching angle≥30°
departure angle≥40°
(mm) min.ground clearance380
enginemodelWD12.375
typewater-cooled,6 cylinders in line,tubocharge,intercool
stroke x broe126×130
displacement11.596
(KW/r.p.m)rated power276/2200
(N.m/r.p.m)max. torque1500/1300-1600
clutchSACHS-430
gearboxmodel9JSD180, Manual ,mechanical gearbox,9 forward gear,1 reverse gear
(N.m)permission input torque1800
tranmission ratioforward gear12.65; 8-38; 6.22; 4.57; 3.4; 2.46; 1.83; 1.34; 1.00; reverse gear 13.22
axlefront axle(13T),middle and rear axle ratio 9.716(BEIBEN 25T)
steering systemZ06.Hydralic boosting steering,whole circulation in ball type
brake systemdouble circulation air brake,three sets of braking system
service brake-contrallable double circulation foot brake
parking brake- hand controlled blow-down springs brake
engine exhaust brake
frameDouble-layer composite,the same width 1020mm frame,dimension of section 320x90x8+8(mm), Full- wide straight frame with section of 330 x 80 x 16(8+8)mm, All frame and cabin were stamped by large-scale precision hydraulic press for the one-time molding.


front suspensionThe longitudinal lay-out style of 13 parabolic leaf-springs, shock absorb
rear suspension13 parabolic leaf springs with no-independent style balance suspension
cabOffset cabin, Full steel skeleton structure, covered with double layer steel plate, can be tipped forwardly, with air suspension seat for driver. Fully-integrated structure instrument panel , Internal A/C, Radio ,MP3 Player, air horn, sun visor, rear mirror, wiper, gauges (with color indication for safe and unsafe working), monitoring and working signals are conveniently,located within easy reach of the operator.
electronics systmestorage battery2×165Ah
generator1500W,28V×55A
starter5.4KW
rated voltage24V
audio deviceMP3(SD/USB)
Dumper bodyfront lifting body,body dimension5.6x2.9x1.6m,bottom steel thinkness 14mm with 5 longitudinal frame,edge steel thinkness10mm(material 16Mn),upright front steel with 10mm rear door. 8mm thinkness frame on rear door.four wrap angle,upside and downside hinge,HYVA 172pump
A/Cheat from engine coolant system
Inner A/C
tyre14.00-24
fuel tanker400L
othersheating system on bottom of dumper body


As a leading Chinese machinery and truck exporter, we have a professional experience of 8years in this field. Besides our trucks of high quality, our international sales team will also provide you excellent logistics service and after-sales service.  We will always do our best to solve all the problems and put our customer's interests in the first place.
