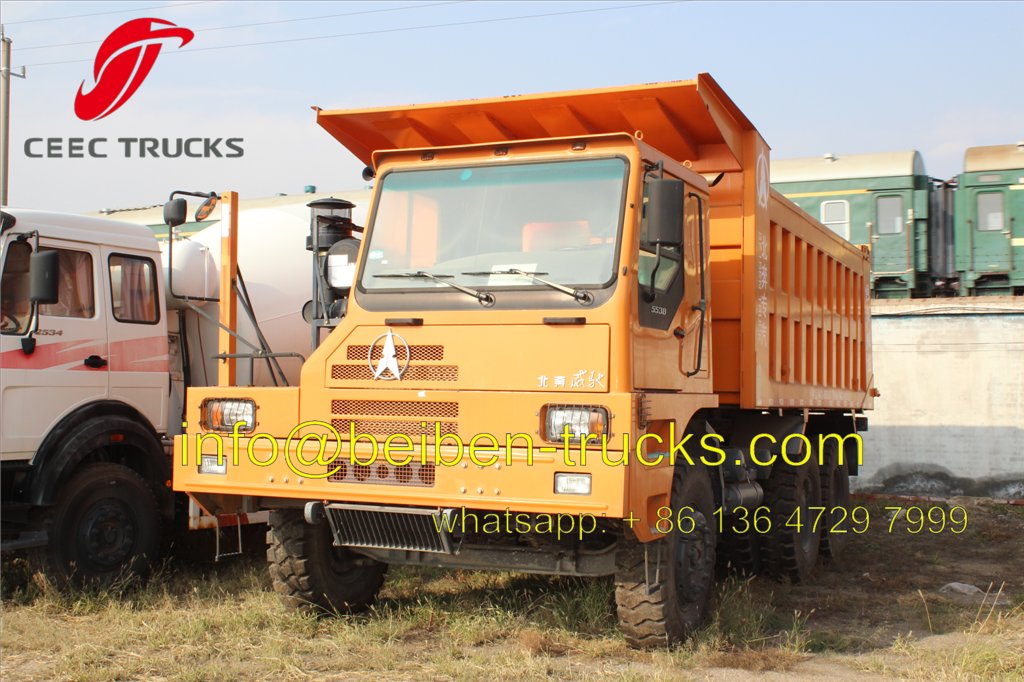

Beiben 55t 380HP Mining Dump Truck (5538KK)

 Beiben 55t 380HP Mining Dump Truck (5538KK)



Product Description

BEIBEN North Benz mining dump truck

1.Good price from factory
2.High quality
3.Quick delivery
4.Spare parts for sale too

INTRODUCTION:

The vehicles adopts offset driving cabs with single door and single seat, used for mining. The structure of metal framework and stressed-skin exclusive to the domestic heavy-duty trucks makes possible the security of European vehicles at the same level, and can satisfy the requirements of European ECER29 Security Regulations. The vehicle frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, strengthened structure, all making it suitable for the transportation of heavy goods , used as engineering machinery, under poor working condition such as in mine.


Beiben Mining dump truck 7042KK

model		7042KK
driving model		6×4
gross weight		70000
(Kg) curb weight		28500
(Kg)load capacity		41500
(Kg)Front\rear axle load capacity		25000/40000/40000
exterior dimension		8630X3600X3950
(mm) wheelbase		3775+1700
(mm) threadbase		2866/2690
(mm) front/rear suspension		1590/1535
(Km/h)top speed		42
max. slope climbing capacity		30%
(m) turnning diameter		≤23
approching angle		≥30°
departure angle		≥40°
(mm) min.ground clearance		330
engine	model	WD12.420
	type	water-cooled,6 cylinders in line,tubocharge,intercool
	stroke x broe	126×155
	(L) displacement	11.596
	(KW/r.p.m)rated power	309/2200
	(N.m/r.p.m)max. torque	1750/1300-1600
clutch		double∮400
gearbox	model	Manual ,mechanical gearbox,9 forward gear,1 reverse gear
	(N.m)permission input torque	2200
	tranmission ratio	forward gear12.44; 8.31; 6.09; 4.54; 3.36; 2.47; 1.81; 1.35; 1.00; reverse gear 12.99
axle		front axle(25T),middle and rear axle ratio12.95(BEIBEN 40T)
steering system		.Hydralic boosting steering,whole circulation in ball type
brake system		double circulation air brake,three sets of braking system
		service brake-contrallable double circulation foot brake
		parking brake- hand controlled blow-down springs brake
		engine exhaust brake
frame		Double-layer composite,the same width 1020mm frame,dimension of section 320x90x8+8(mm), Full- wide straight frame with section of 330 x 80 x 16(8+8)mm, All frame and cabin were stamped by large-scale precision hydraulic press for the one-time molding.
	front suspension	The longitudinal lay-out style of 13 parabolic leaf-springs, shock absorb
	rear suspension	13 parabolic leaf springs with no-independent style balance suspension
cab		Offset cabin, Full steel skeleton structure, covered with double layer steel plate, can be tipped forwardly, with air suspension seat for driver. Fully-integrated structure instrument panel , Internal A/C, Radio ,MP3 Player, air horn, sun visor, rear mirror, wiper, gauges (with color indication for safe and unsafe working), monitoring and working signals are conveniently,located within easy reach of the operator.
electronics systme	storage battery	2×165Ah
	generator	1500W,28V×55A
	starter	5.4KW
	rated voltage	24V
	audio device	MP3(SD/USB)
Dumper body		front lifting body,body dimension5.6x2.9x1.6m,bottom steel thinkness 14mm with 5 longitudinal frame,edge steel thinkness10mm(material 16Mn),upright front steel with 10mm rear door. 8mm thinkness frame on rear door.four wrap angle,upside and downside hinge,HYVA 172pump
A/C		heat from engine coolant system
		Inner A/C
TYRE		14.00-25
fuel tanker		400L

Beiben Mining dump truck 5538KK

model		5538KK
driving model		6×4
(Kg) gross weight		55000
(Kg) curb weight		22000
(Kg)load capacity		33000
(Kg)Front\rear axle load capacity		13000/47000
(mm)exterior dimension		8470×3100×3850
(mm) wheelbase		3500+1600
(mm) threadbase		2497/2228
(mm) front/rear suspension		1590/1740
(Km/h)top speed		55
max. slope climbing capacity		30%
(m) turnning diameter		≤22
approching angle		≥30°
departure angle		≥40°
(mm) min.ground clearance		380
engine	model	WD12.375
	type	water-cooled,6 cylinders in line,tubocharge,intercool
	stroke x broe	126×130
	displacement	11.596
	(KW/r.p.m)rated power	276/2200
	(N.m/r.p.m)max. torque	1500/1300-1600
clutch		SACHS-430
gearbox	model	9JSD180, Manual ,mechanical gearbox,9 forward gear,1 reverse gear
	(N.m)permission input torque	1800
	tranmission ratio	forward gear12.65; 8-38; 6.22; 4.57; 3.4; 2.46; 1.83; 1.34; 1.00; reverse gear 13.22
axle		front axle(13T),middle and rear axle ratio 9.716(BEIBEN 25T)
steering system		Z06.Hydralic boosting steering,whole circulation in ball type
brake system		double circulation air brake,three sets of braking system
		service brake-contrallable double circulation foot brake
		parking brake- hand controlled blow-down springs brake
		engine exhaust brake
frame		Double-layer composite,the same width 1020mm frame,dimension of section 320x90x8+8(mm), Full- wide straight frame with section of 330 x 80 x 16(8+8)mm, All frame and cabin were stamped by large-scale precision hydraulic press for the one-time molding.
	front suspension	The longitudinal lay-out style of 13 parabolic leaf-springs, shock absorb
	rear suspension	13 parabolic leaf springs with no-independent style balance suspension
cab		Offset cabin, Full steel skeleton structure, covered with double layer steel plate, can be tipped forwardly, with air suspension seat for driver. Fully-integrated structure instrument panel , Internal A/C, Radio ,MP3 Player, air horn, sun visor, rear mirror, wiper, gauges (with color indication for safe and unsafe working), monitoring and working signals are conveniently,located within easy reach of the operator.
electronics systme	storage battery	2×165Ah
	generator	1500W,28V×55A
	starter	5.4KW
	rated voltage	24V
	audio device	MP3(SD/USB)
Dumper body		front lifting body,body dimension5.6x2.9x1.6m,bottom steel thinkness 14mm with 5 longitudinal frame,edge steel thinkness10mm(material 16Mn),upright front steel with 10mm rear door. 8mm thinkness frame on rear door.four wrap angle,upside and downside hinge,HYVA 172pump
A/C		heat from engine coolant system
		Inner A/C
tyre		14.00-24
fuel tanker		400L
others		heating system on bottom of dumper body

As a leading Chinese machinery and truck exporter, we have a professional experience of 8years in this field. Besides our trucks of high quality, our international sales team will also provide you excellent logistics service and after-sales service.  We will always do our best to solve all the problems and put our customer's interests in the first place.
