3138
|
|||
|
Dimension
|
11880*2500*3430mm
|
||
|
Approaching
angle/Departure angle
|
26/28°
|
||
|
Overhang(front/rear)
|
1410/1720mm
|
||
|
Wheel
base
|
1950+4350+1350
mm
|
||
|
Max
speed
|
85km/h
|
||
|
Curb
weight
|
14650kg
|
||
|
Engine
|
Model
|
WP10.340E32, water-cooled, four strokes, 6 cylinders
in line, turbocharged, directly injection
|
|
|
Displacement
|
9.726L/Diesel
|
||
|
Stroke
|
126/130mm
|
||
|
Max.
power
|
220/2200
(kw/rpm)
|
||
|
Max.torque
|
1600/1800(N.m/rpm)
|
||
|
Emission
|
Euro
III
|
||
|
Fuel
tanker capacity
|
300L
|
||
|
Clutch
|
∮430,
Single dry frictional disc,Hydraulic boosting
|
||
|
Gearbox
|
9JS180,
mechanism, 9 forward gears, 1 reverse gear, manual operated
|
||
|
Gear
ratio of gear box
|
12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00
R:13.22
|
||
|
Suspension
system
|
Front
|
Non-free
standing leaf spring,telescopic shock absorber with stabilizer bar suspension
, 10pcs
|
|
|
Rear
|
Non-free
standing stabilization spring, balance suspension system, 13pcs
|
||
|
Brake
system
|
Service
brake
|
Brake
gap can be adjusted automatically, double circulation air brake system
|
|
|
Assistant
brake
|
Engine
exhaust brake
|
||
|
Park
brake
|
Potential
springs pressing on middle and rear wheels
|
||
|
Steering
system
|
ZF8098
hydraulic steering with power assistance
|
||
|
Frame
|
Strengthened
Straight beam
|
||
|
Front
axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, non-driving steering axle
|
||
|
Middle
and Rear axle (Mercedes Technology)
|
Double-shoe
pneumatic brake, ductile casting casing, with hub redactor, double reduction
driving axle
|
||
|
Tyre
|
315/80R22.5
tubeless tyres
|
||
|
Electrical
system
|
Battery
|
2X12V/135Ah
|
|
|
Generator
|
28V-35A
|
||
|
Starter
|
5.4Kw/24V
|
||
|
Cabin
|
NG80B
Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back with arm seat for driver, high back seat for co-driver; With inner A/C |
||
|

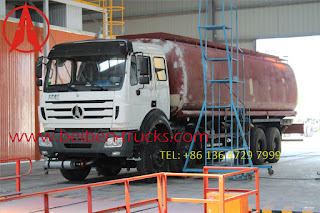

Tank Body
|
Tank Shape Ellipse Style
|
|
Capacity ,liters
|
40,000
|
|
Compartments,pcs
|
5
|
|
Pressure,Mpa
|
0.084
|
|
Outlet Pipe Diameter,mm
|
80
|
|
Baffles,pcs
|
6
|
|
Manhole No.s
|
3
|
|
Hose,pcs x m
|
2 x 6
|
|
Filling Time,min
|
<10
|
|
Drainage Time,min
|
<22
|
|
Length,mm
|
7400
|
|
Width,mm
|
2380
|
|
Height,mm
|
1550
|
|
Material Thickness,mm
|
5
|
|
Cover Thickness,mm
|
5
|
|
Tank Material
|
Carbon steel, Q235A 16Mn
|
|
Pump
|
80YHCB-60
|
|
Self-Suction Depth,m
|
6.5
|
|
Capacity ,liters/h
|
60
|
|
Flow Length,m
|
20
|
|
Flow Speed, l/min
|
960
|
|
Shaft Power,kw
|
22.5
|
|
Inlet Diameter,mm
|
80
|
|
Outlet Diameter,mm
|
60
|
|
Pressure,Mpa
|
0.6
|
|
Suction Time,min
|
<4
|
|
Name
|
Standard
configuration
|
|
♦ Tank volume
|
Full capacity 40000L
|
|
♦ Transport medium
|
fuel
|
|
♦ Tank Material
|
Carbon steel(Aluminium
alloy or Stainless steel are optional)
|
|
♦ Compartment plate
|
Nil
|
|
♦ Shell Body
|
5 mm nominal thickness
|
|
♦ Head
|
5 mm nominal thickness
|
|
♦ Tank shape
|
Ellipse
|
|
♦ Compartment
|
1 compartment (40000L)
|
|
♦ Shell Finish
|
Shot blasted with 1 antirust, 1 base coat and 1 finishing coat, the
color of tank is according to customer requirement.
|
|
♦ Testing Pressure
|
36kPa,
standard water pressure test
|
|
♦ Logo & Color
|
Any
color and logos are FREE according to
our clients wish
|
|
Name
|
Standard configuration
|
|
♦ Top inlet port:
|
Nil
|
|
♦ Manhole Cover:
|
Carbon steel.
|
|
♦ Outlet port:
|
One pneumatic sea valve which at the front of tank, the size of outlet
port is 3 inches, fix all connector.
|
|
♦ Pipe box:
|
It made of PVC material, round shape which on the both sides of tank,
one plastic pipe (5m)
|
|
♦ Anti – Static System:
|
Static electricity plate , copper plate and earth cable reel.
|
|
Name
|
Standard configuration
|
|
♦ Ladder:
|
Excellent carbonsteel ladder fixed at rear of tank
|
|
♦ Walkway
Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
|
|
♦ Handrail:
|
No
|
|
♦ Fire
Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|
|
♦ Pump
Device
|
Yes
|
|
♦ Flow
meter
|
Yes
|
|
♦ Tool
box
|
Small box
|
|
Standard configuration
|
|
|
♦Control
|
Provide all easy and reliable control system
|
|
♦ Assembly
|
All the controlling devices and where to be fixed are all confirmed
after we talked with our customers
|
|
♦ Control
|
All the control devices are in one water proof box.
|
|
♦ Marks
|
Make clear marks on the necessary places of the whole truck
|
|
Name
|
Standard configuration
|
|
♦ Factory
inspection
|
Customer can inspect the trucks in manufactures factory
when completed, then arrange the balance payment.
|
|
♦ Operation Manual
|
English Version
|
|
♦ Training fee
|
Two FREE days training in CEEC factory
|
|
♦ Training
type
|
Required training about using the equipment will be given by the
manufacturer to the related workers in the superstructure area
|
