Beiben water trucks
As the best beiben tanker trucks manufacturer in
china, CEEC TRUCKS plant can produce good quality beiben 2527 water
truck ,beiben 2529 water truck,beiben 3129 water truck ,beiben 3134
water tanker truck.
Our beiben water trucks can be beiben 4*4 drive system, beiben 6*4 driving system, and beiben 6*6 drivie system. Also the tanker capacity of our beiben trucks can be range from 10CBM, 20 CBM, 30 CBM and 40 CBM.
Our beiben water tanker trucks feature:
* Three patented items: Design patent, sde washing road device for vehicle and pneumatic pipe clean device.
* Low& Flat high water flow washing, high speed and high efficiency.
* All pneumatic pressure system, no weakness of hydraulic pressure, like high price and complicated mainteance
*Metal printed inside the tank keeps the tanker from rusting, stainless steel tanker is optional .
Best design for beiben 4*2 water truck and beiben 6*4 water truck.
All the components for beiben water trucks are fully
applied famous brand, very reliable quality. Currently, CEEC TRUCKS have
sucessfully supplied more than thousands of beiben water tanker trucks
to west africa, east africa, north africa and south africa.
| Model | Engine Model | Rated Power | Payload | Driving Mode |
| ND1160A41 | WP6.180 | 180 Hp | 10 CBM | 4*2 |
| Beiben 3132 | WP10.270 | 270 Hp | 30 CBM | 8*4 |
| ND1252 | WP10.240 | 240 Hp | 20 CBM | 6*4 |
| Beiben 2528 | WP10.270 | 270 Hp | 270 Hp | 6*4 |
| Beiben 2527 | WP10.270 | 270 Hp | 18 CBM | 6*4 |
| ND1160A41 | WP6.180 | 180 Hp | 10 CBM | 4*2 |
The series
products of our Beiben
military all wheel drive water trucks are ideal transport with outstanding
performance and high quality, they are widely used in industries and sectors,
such as national defense, aviation, postal service, railways, highways,
harbors, petroleum, chemicals, water and electricity, forests, fire fighting,
banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben
truck is the Chinese best truck brands and best quality, technical performance
properties index and conform to the state and military standard.
Beiben truck
features and advantages:
1: Driving room: the steel structure, high
safety,lower wind resistance coefficient
2:Power system dynamic matching technology of
mercedes-benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high
intensity
4: Benz axle: double deceleration bridge, high
efficiency, carrying large
5: Transmission system: high efficiency, bigger
torque, climbing superior performance
6: Steering system:high safe and reliable, and
flexible
7:Braking system, high security, brake with high
efficiency
8: Electric system: stronger load ability, high
reliability and easy maintenance
.
Detail
Technical Parameters:
A. Truck:
|
Name
|
Standard configuration
|
|
|
♦ Model:
|
CEEC5201GDFL
|
|
|
♦ Drive type:
|
6x4 Right
hand drive
|
|
|
♦Wheelbase
|
4450+1450 mm
|
|
|
♦ Cab type:
|
All-steel-welded construction, power tilting cab; spring suspensions
with hydraulic shock absorbers. The color is white.2 seats, AM/FM CD/MP3 Player
|
|
|
♦ Air condition
|
Yes
|
|
|
♦ Engine
|
Model
|
WP10.340
|
|
Type
|
6-Cylinder in-line, 4-Cycle, Water-cooled, OHC, Turbo with intercooler
|
|
|
Max power
|
250 kw (340hp)
|
|
|
Displacement
|
9.8 L
|
|
|
♦ Transmission
|
Fast technology 9-shift Manual, 9 forward and 1reverse speed
|
|
|
♦ Fuel tank
|
300 Liters
|
|
|
♦ Tyres:
|
10.00-20
|
|
|
♦ Maximum drive speed:
|
105 km/h
|
|
|
♦ Max.Gradeability
|
31%
|
|
|
♦ Truck Curb Weight
|
11400 kg
|
|
|
♦ Overall Dimension (LxWxH)
|
9460x2500x3600mm
|
|
B. Tank:
|
Name
|
Standard configuration
|
|
♦ Tank volume
|
Full capacity 20000L
|
|
♦ Transport medium
|
Water
|
|
♦ Tank Material
|
Carbon steel(Aluminium alloy or
Stainless steel are optional)
|
|
♦ Compartment plate
|
Nil
|
|
♦ Shell Body
|
5 mm nominal thickness
|
|
♦ Head
|
5 mm nominal thickness
|
|
♦ Tank shape
|
Ellipse
|
|
♦ Compartment
|
1 compartment (20000L)
|
|
♦ Shell Finish
|
Shot blasted with 1
antirust, 1 base coat and 1 finishing coat, the color of tank is according to
customer requirement.
|
|
♦ Testing Pressure
|
36kPa,
standard water pressure test
|
|
♦ Logo & Color
|
Any color
and logos are FREE according to our
clients wish
|
C. Tank Fittings
|
Name
|
Standard configuration
|
|
♦ Top inlet port:
|
Nil
|
|
♦ Manhole Cover:
|
Carbon steel.
|
|

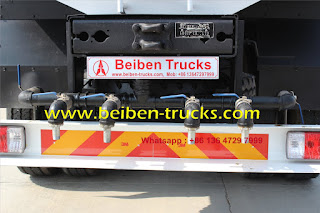

♦ Outlet port:
|
One pneumatic sea valve which at the front of tank, the size of outlet
port is 3 inches, fix all connector.
|
|
♦ Pipe box:
|
It made of PVC material, round shape which on the both sides of tank,
one plastic pipe (5m)
|
|
♦ Anti – Static System:
|
Static electricity plate , copper plate and earth cable reel.
|
D. Tank Accessories
|
Name
|
Standard configuration
|
|
♦ Ladder:
|
Excellent carbonsteel ladder fixed at rear of tank
|
|
♦ Walkway
Platform:
|
It fixed on the top of tank with anti – skid surface treatment.
|
|
♦ Handrail:
|
No
|
|
♦ Fire
Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire extinguisher
|
|
♦ Pump
Device
|
Yes
|
|
♦ Flow
meter
|
Yes
|
|
♦ Tool
box
|
Small box
|
E. Control:
|
Standard configuration
|
|
|
♦Control
|
Provide all easy and reliable control system
|
|
♦ Assembly
|
All the controlling devices and where to be fixed are all confirmed
after we talked with our customers
|
|
♦ Control
|
All the control devices are in one water proof box.
|
|
♦ Marks
|
Make clear marks on the necessary places of the whole truck
|
F. Inspections & Training:
|
Name
|
Standard configuration
|
|
♦ Factory
inspection
|
Customer can inspect the trucks in manufactures factory
when completed, then arrange the balance payment.
|
|
♦ Operation Manual
|
English Version
|
|
♦ Training fee
|
Two FREE days training in CEEC factory
|
|
♦ Training
type
|
Required training about using the equipment will be given by the manufacturer
to the related workers in the superstructure area
|
|

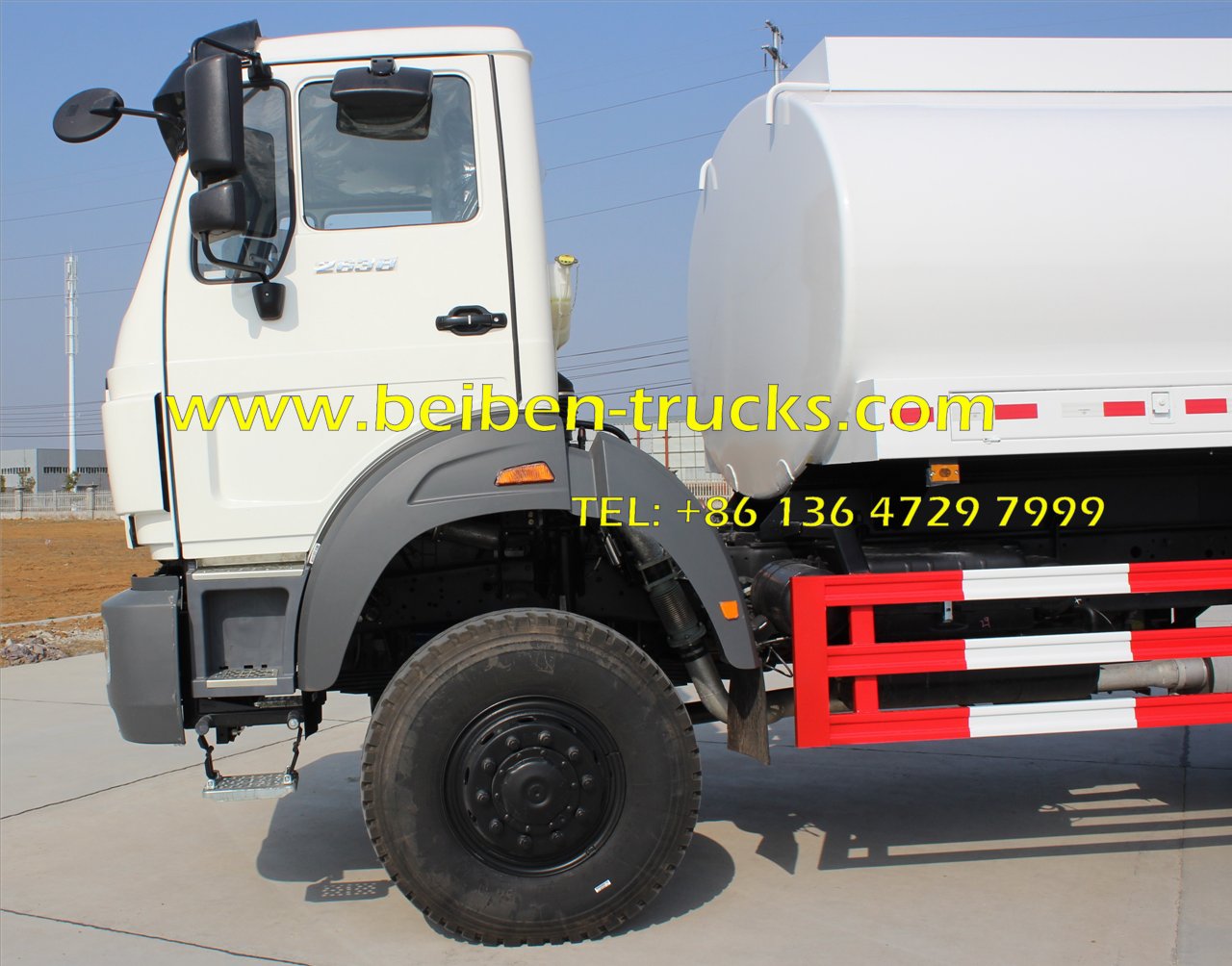

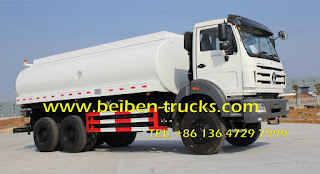

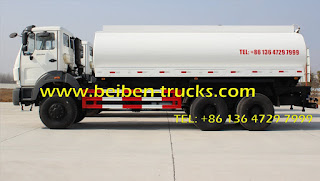

Vehicle Name:
|
Beiben 6*6 truck chassis
|
|
Types of drive
|
Right
hand drive (LHD & RHD )
|
|
Length*width*height (mm)
|
9400*2500*3260
|
|
Kerb weight (kg)
|
9100
|
|
Truck model number
|
2538S
|
|
Drive wheel
|
6×6
|
|
Engine model
|
WD615.38 Diesel
4-stroke direct injection engine, 6-cylinder in-line with water cooling,
turbo-charging & intercooling
|
|
Horsepower(hp)
|
380
|
|
Bore*stroke (MM)
|
138*155
|
|
Displacement (L)
|
11.596
|
|
Rated speed (R/min)
|
2200
|
|
Max torque (Nm)
|
1750
|
|
Max Torque speed( R/min)
|
1300-1600
|
|
Lowest fuel consumption
(G/kw.h)
|
< 198
|
|
Net weight (KG)
|
905
|
|
Meridian tire
|
14.00R20
|
|
Number of tires
|
10 +
1(spare wheel)
|
|
Saddle types
|
None
|
|
Transmission types :
|
RT11509C , 9 shift transmission, FAST technology
|
|
Steering mechanism:
|
ZF8098
|
|
Wheelbase (mm)
|
4450+1450
|
|
Cab style
|
Long
with 2 beds, Benz technology
|
|
Air-condition
|
With
air-condition
|
|
Cab body style
|
The
whole steel ,The driver’s seat adjustable , high safety,lower wind resistance
coefficient, Benz Technology.
|
|
Steering system
|
High
safe and reliable, and flexible, ZF8098
|
|
Brake system
|
Service
brake ,Can automatically adjust the brake clearance, Double air brake system
, WEVB
|
|
Electric system:
|
Stronger
load ability, high reliability and easy maintenance
|
|
Truck frame style
|
Fish
maw shape, inequilaterally section, equal intensity, Benz technology
|
|
Front axle
|
Benz 7.0T Transaxle
|
|
Rear axle
|
Benz Technology,double deceleration bridge, high
efficiency, carrying large, Mercedes
Benz strengthened axle (punching-welding axle housing, double
reduction driving axle, inter-wheel differential and differential lock)
Ratio=5.263
|
|
Electric system:
|
Stronger
load ability, high reliability and easy maintenance,24 V
|
|
Emission standard
|
Eur 2
& EURO 3
|
|
Fuel tank capacity (L)
|
400
|
|
Optional equipment
|
Saddle
, upper berth, ABS , squareness silencer.
|
