Beiben 2534 off road fuel tanker truck
Product Details

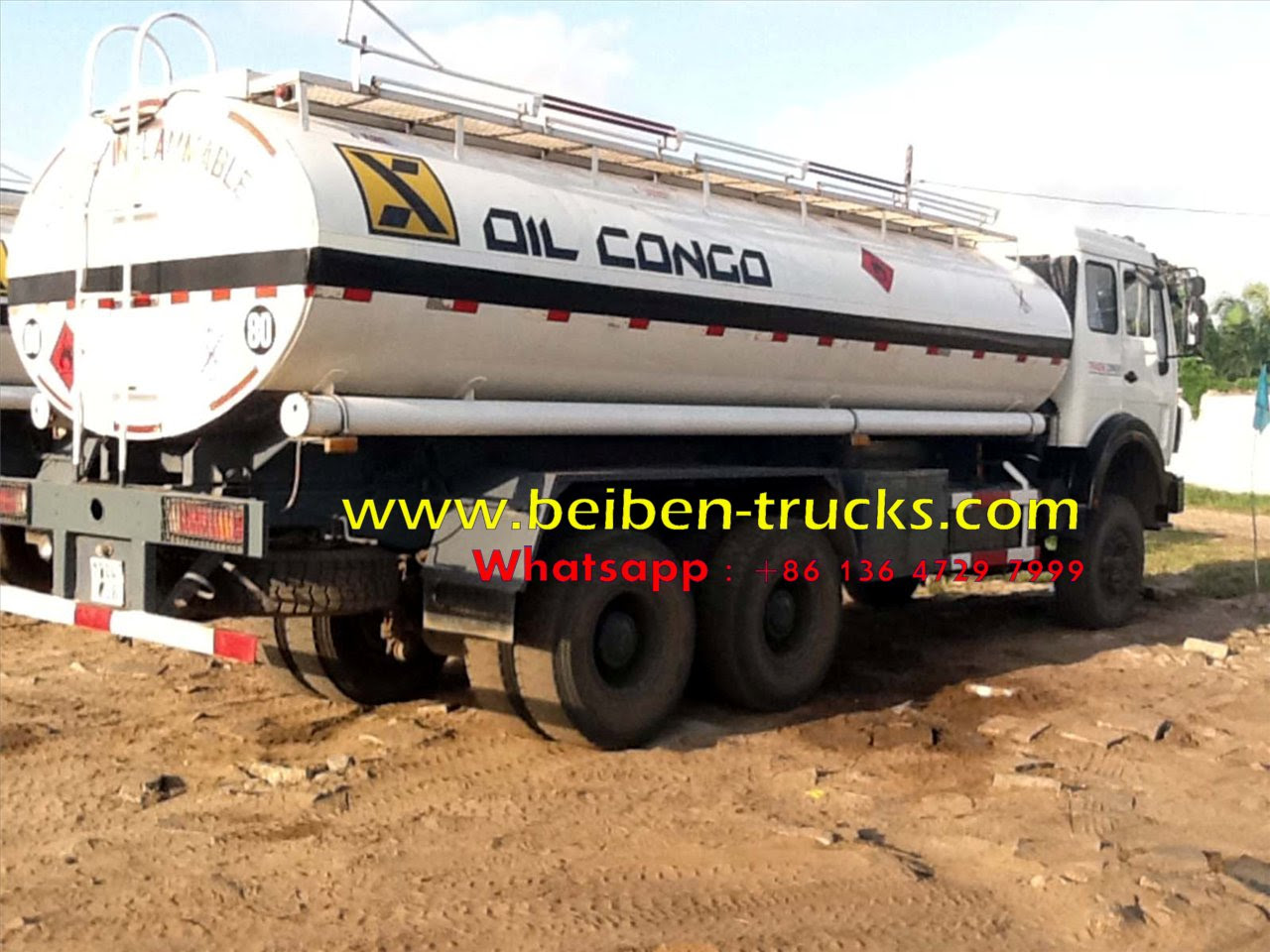

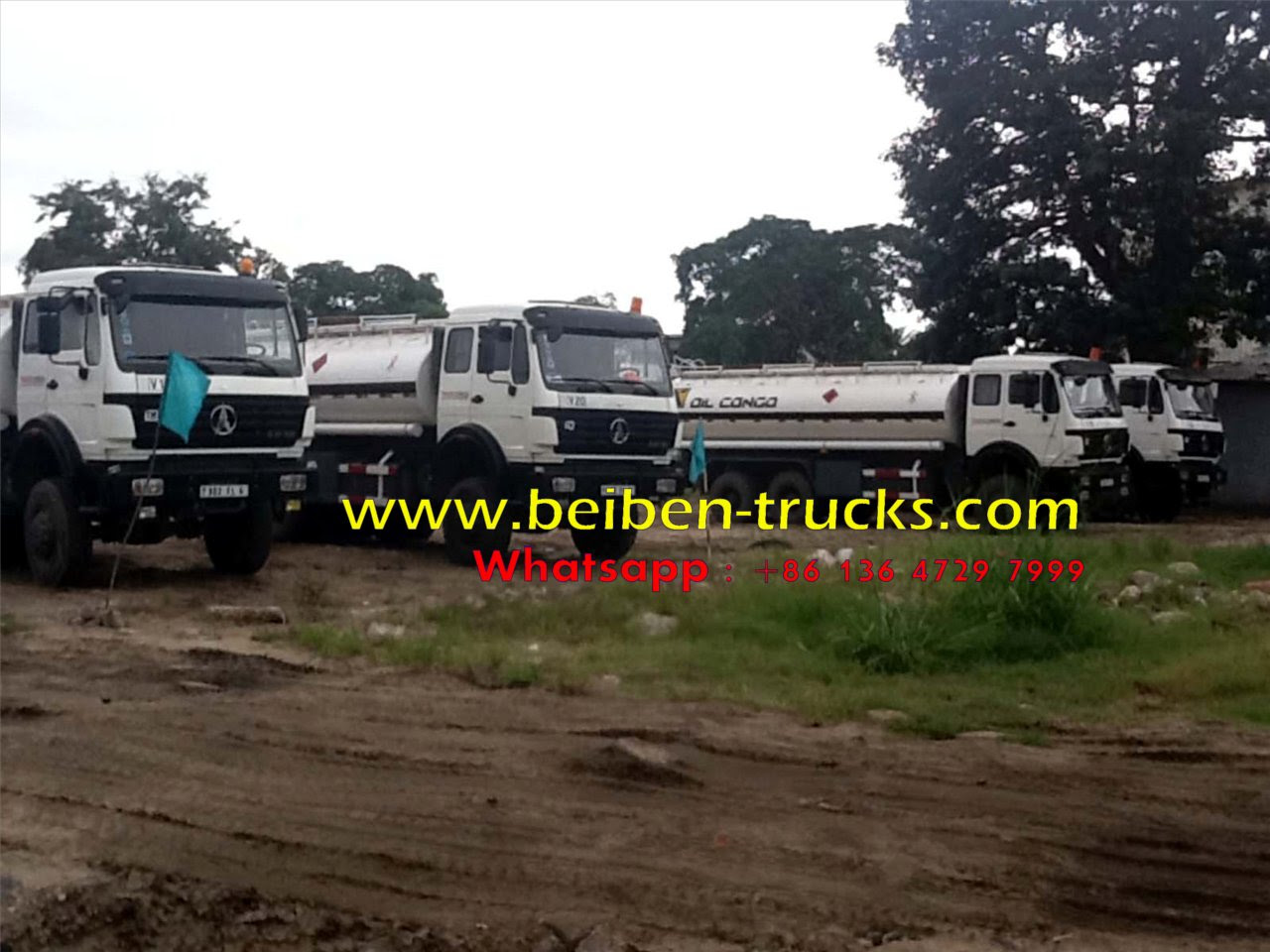

Beiben 2534 fuel tanker truck 6 wheel drive for congo country.
The most professinal beiben 2529,2534,2538,2542 off road fuel tanker truck, water tanker truck, truck mounted crane, fire truck manufacturer in china.
CEEC TRUCKS plant is the most professional beiben fuel trucks manufacturer, more than 15 years great experience on manufacturing beiben 2527 fuel truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben 2538 fuel tanker truck,beiben 3132 fuel tankers.
The most professinal beiben 2529,2534,2538,2542 off road fuel tanker truck, water tanker truck, truck mounted crane, fire truck manufacturer in china.
CEEC TRUCKS plant is the most professional beiben fuel trucks manufacturer, more than 15 years great experience on manufacturing beiben 2527 fuel truck, beiben 2529 fuel truck,beiben 2534 fuel truck ,beiben 2538 fuel tanker truck,beiben 3132 fuel tankers.
The beiben fuel tanker
from us can be beiben 4*2 fuel tanker, beiben 6*4 fuel tanker and beiben
8*4 fuel tankers. All the beiben fuel tanker trucks from ceec trucks
plant can have long guarantee more than 12 months.
All the fuel tanker components that we applied on beiben fuel trucks is china famous brand and reliable quality.
Main Characteristic of CEEC TRUCKS beiben fuel tanker truck, the advantage is as follows:
* Total beiben tanker are
portainted welded by automatically carbon dioxide welding. Nice surface
without obvious welding line, safety and reliabiliy
* Beiben fuel tankers body
could b oval or trapezoid, tank inside with subdivision board, oil
baffle plate, ensure to lighten the shock in the process of
transporting.
* Installed famous breath valve DN60, suitable and effective adjust the pressure in the north benz oil tankers.
*Static guiding equipment
lap joint adhensive tape on the rear tank can efficiently protect static
that arise in the transportation
|
16m3 BeiBen 6*6 fuel tanker truck
|
||||
|
Item
|
Descriptions
|
Spesifications and Types
|
||
|
Vehicle
|
Brand
|
CEEC
|
||
|
Model
|
CEEC5256GJYZ
|
|||
|
Overall Dimensions L*W*H
|
10465x2500x3420mm
|
|||
|
Weights
|
GVW.
|
25,000kgs
|
||
|
Curb Weight
|
12,270kgs
|
|||
|
Rated Payload
|
12,600kgs
|
|||
|
Chassis
|
Brand
|
BeiBen
|
||
|
Model
|
ND1250F50J
|
|||
|
Drive Type
|
6x6
|
|||
|
Steering
|
RHD or LHD, power assisted steering
|
|||
|
Engine
|
Brand
|
WeiChai
|
||
|
Model
|
WP10.375
|
|||
|
Power
|
276Kw /375HP
|
|||
|
Displacement
|
9726ml
|
|||
|
Emmission Level
|
EURO 3
|
|||
|
Max. Torque
|
970Nm at 1400rpm
|
|||
|
System
|
Inline six-cylinder electronic control system Enhanced high pressure common rail particle filter
|
|||
|
Performance
|
Max. Speed
|
80km/h
|
||
|
Wheel base
|
5050+1450mm
|
|||
|
Tyre Specifications
|
12.00-20
|
|||
|
No. of Tyre
|
13pcs (1 spare tyre included)
|
|||
|
Axle Capacity
|
Front 8 Tons & rear 12Tons
|
|||
|
Transmission
|
8 forward gears & 1 reverse, Manual
|
|||
|
Brake
|
Oil brake,drum brake
|
|||
|
Suspension
|
Leaf spring
|
|||
|
Electics
|
24V
|
|||
|
Cab
|
Cab Capacity
|
3 persons allowed
|
||
|
Cab Type
|
One and a half row
|
|||
|
Body/Superstructure
|
Tank
|
Capacity
|
16 m³
|
|
|
Material
|
tank shell 5mm ,dished ends 6mm,compartment boards 5mm,the material is carbon steel
|
|||
|
Loading System
|
Top filling from manhole or pump fuel into tank from oil inlet valve.
|
|||
|
Discharging System
|
Pump fuel out from tank or gravity discharge.
|
|||
|
Basic
Equipments |
Install
fuel pump drive by truck engine through PTO; One manhole, two pcs of
fuel hoses (3inches) with complete quick connectors, access ladder,
tank top anti-slip steel mesh installed, anti-static device, one fire
extinguisher, with two corners’ lights and reflective tape.
|
|||
|
Paint
|
Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client’s requirements. |
|||
|
Optional Equipments
|
Air Conditioner
|
|||
|
Tyre type:12.00R20
|
||||
|
Tank material:Stainless steel
|
||||
|
The tank thickness :5mm carbon steel
|
||||
|
Bottom loading
|
||||
|
Flow meter, rolling hose with nozzle, emergency valve, compartment number, epoxy coating inside tank
|
||||
