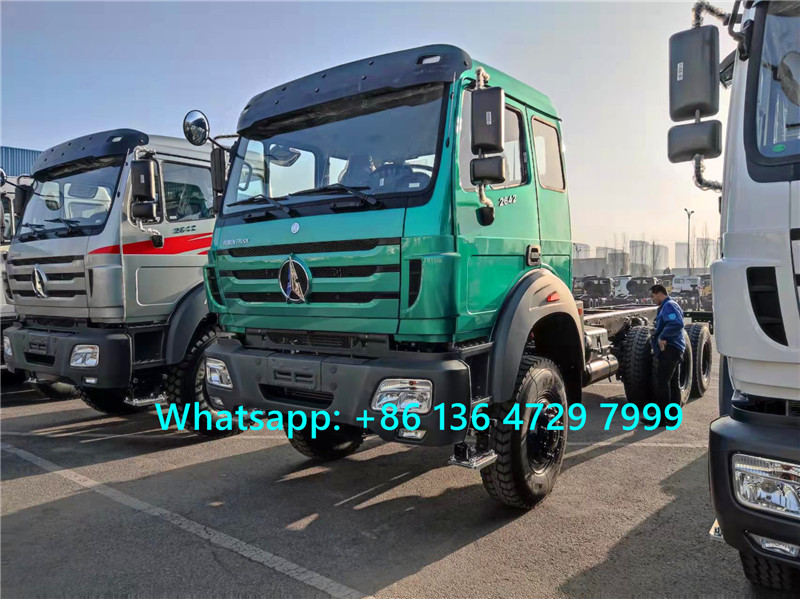

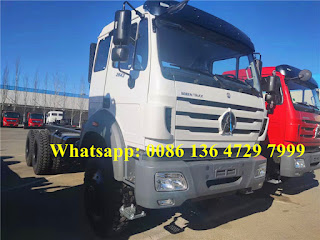

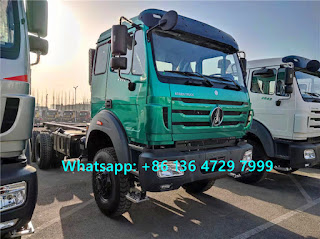

beiben 2642 off road truck
-
FOB Price
$63,000-$69,000
-
Production time
40 days
-
Payment terms
T/T

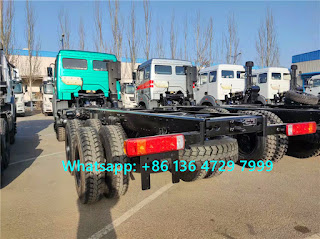

Beiben 6*6 drive truck chassis
Applications:
Beiben 2642 truck
chassis, also called as beiben 2642 cargo truck, china beiben 2642 off
road truck, congo beiben 10 wheeler off road truck chassis. This beiben
heavy duty truck 6*6 drive chassis can loading, transporting and
discharging heavy duty
material , also can
be used in for extremely road and weather situation, can be used in wild
area, off road area.
china beiben 2642 truck chassis apply germany benz technology device, with extremely work performance.
The north benz 6*6 cargo truck Box material optional: Manganese steel & Carbon steel, which is safe and durable.
Key Features:
---- North benz 2642 chassis, strong military driving system
---- Military quality , Mercedes benz technology
---- 12JS200T transmission, super combination.
---- Original benz technology axle
---- Completely steel cabin , safety and reliable.
Specifications:
|
Model |
ND1255B44J |
|
Driver's cab |
Long cabin, one sleeper |
|

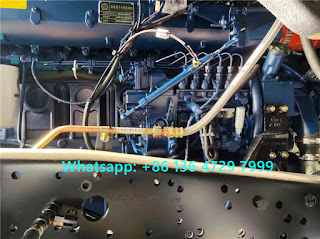

Engine |
Maker: North Benz |
|
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling |
|
|
Engine model: WP12.420NE32 |
|
|
Maximum output:420hp@2200rpm |
|
|
Number of cylinder:6 |
|
|
Displacement: 11.726L |
|
|
Clutch |
Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance |
|
Transmission |
Fuller 12JS200T transmission. |
|
Front Axle |
Mercedes Benz, drum brake |
|
Rear Axle |
Mercedes Benz double reduction drive axle, ratio=5.2 |
|
Steering |
ZF8098 |
|
Wheel & Types |
Rims:8.5-20 |
|
Tyre:12.00R20 tube |
|
|
Optional: 12R22.5//315/80R22.5 |
|
|
Radial tire is optional |
|
|
Electrics |
Operating voltage: 24V,negative grounded |
|
Dimensions in mm |
Wheel base : 4450+1450 |
|
Overall size: 10250x2500x3385 |
|
|
Weight in kg |
Kerb. mass: 9800 kg |
|
Total mass: 25000kg |
|
|
Performance |
Maximum driving speed(km/h) 85 |
|
Body in mm |
7000x2300x800 |
|
The manufacture reserves the right of technical alteration/change for better improvement prior notice |
|
Beiben 2642 off road truck system, 6*6 drive system.

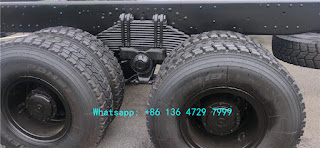

beiben heavy duty suspension system, 4 U-BOLT system for overloading.
